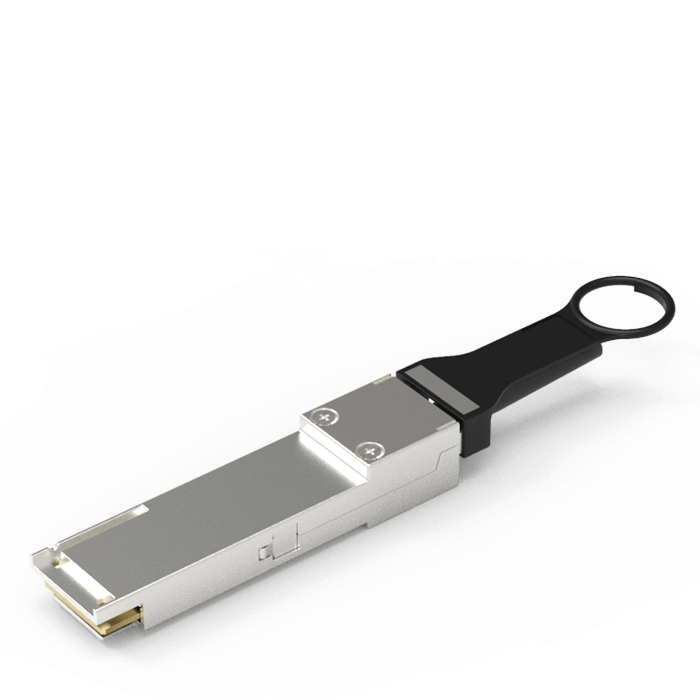

100G S-QSFP28 AOC
Luxshare-TECH 100Gbps S-QSFP active optical cables can provide high-performance, good quality and consistent service.
FEATURES & BENEFITS
- Hot Pluggable QSFP Cable End
- Supports 25.78125Gbps per channel
- Low Power Dissipation, MAX 1.8W Each End
- Operating Case Temperature: 0℃ to +70℃/-5℃ to +85℃
了解更多
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA0QQ1102-SD-R | S-QSFP | AOC | 0.5m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1112-SD-R | S-QSFP | AOC | 1m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1212-SD-R | S-QSFP | AOC | 2m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1312-SD-R | S-QSFP | AOC | 3m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1412-SD-R | S-QSFP | AOC | 5m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1512-SD-R | S-QSFP | AOC | 7m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1612-SD-R | S-QSFP | AOC | 10m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1712-SD-R | S-QSFP | AOC | 15m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1812-SD-R | S-QSFP | AOC | 20m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1912-SD-R | S-QSFP | AOC | 30m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1902-SD-R | S-QSFP | AOC | 50m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1903-SD-R | S-QSFP | AOC | 70m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1913-SD-R | S-QSFP | AOC | 100m | Ethernet | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ111E-SD-R | S-QSFP | AOC | 1m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ121E-SD-R | S-QSFP | AOC | 2m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ131E-SD-R | S-QSFP | AOC | 3m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ141E-SD-R | S-QSFP | AOC | 5m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ151E-SD-R | S-QSFP | AOC | 7m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ161E-SD-R | S-QSFP | AOC | 10m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ171E-SD-R | S-QSFP | AOC | 15m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ181E-SD-R | S-QSFP | AOC | 20m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ191E-SD-R | S-QSFP | AOC | 30m | Ethernet | 100Gbps | -5-85℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1103-SD-R | S-QSFP | AOC | 1m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1203-SD-R | S-QSFP | AOC | 2m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1303-SD-R | S-QSFP | AOC | 3m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1403-SD-R | S-QSFP | AOC | 5m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1503-SD-R | S-QSFP | AOC | 7m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1603-SD-R | S-QSFP | AOC | 10m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1703-SD-R | S-QSFP | AOC | 15m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1803-SD-R | S-QSFP | AOC | 20m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1904-SD-R | S-QSFP | AOC | 25m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1905-SD-R | S-QSFP | AOC | 30m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1906-SD-R | S-QSFP | AOC | 35m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
| PA0QQ1908-SD-R | S-QSFP | AOC | 50m | InfiniBand | 100Gbps | 0-70℃ | 1.8W | NA | VCSEL | PIN | 850nm |
