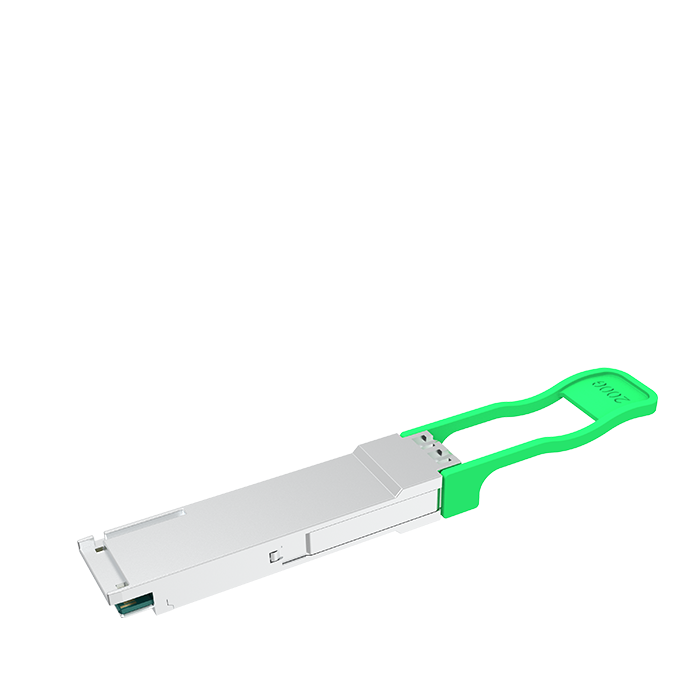

200G U-QSFP56 FR4

Luxshare-TECH 200Gbps QSFP56 optical transceiver built-in mux and de-mux component, it is designed with 4 CWDM DFB Laser and 4 photodiodes. 200G QSFP56 FR4 is designed for 200G Ethernet links communication. The link distance up to 2km with single-mode fiber. The transceiver uses Dual LC optical interface and the electrical interface use a 38 pins type connector. All the design is based on the industry standard specifications, such as SFF-8665, CMIS4.0 and IEEE802.3bs, etc.

  • Hot Pluggable QSFP56 form factor
  • Supports 212.5Gbps aggregate bit
  • Dual LC receptacle
  • Up to 2km SMF cable lengths for 200G-BASE FR4 application
  • Complies with CMIS4.0
  • Operating Case temperature:0℃ to +70℃

Part Number Form Factor Description Reach Data Rate Temp(℃) Power Consumption(W) Optical Connector Wavelength(nm)
PA02QSC01-NC-R QSFP56 FR4 SMF 2km 200Gbps 0~70 10 Dual LC 1271/1291/1311/1331
