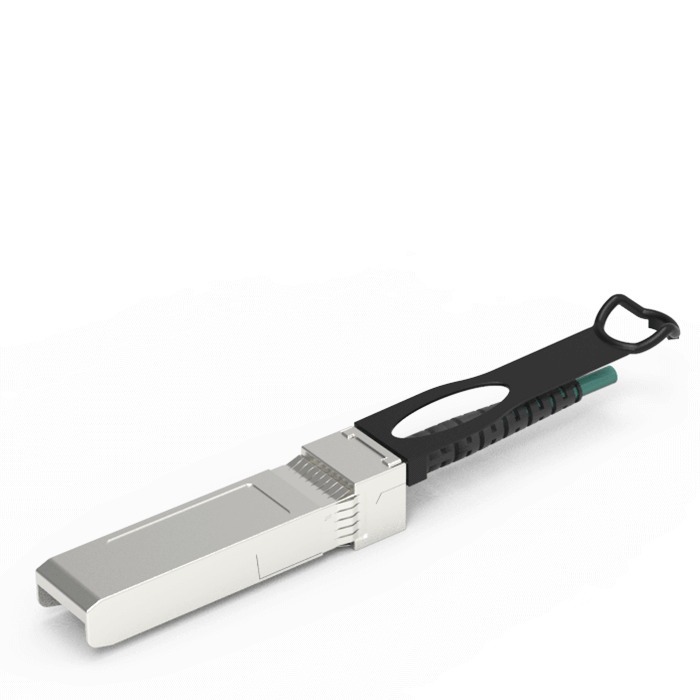

25G S-SFP28 AOC
Luxshare-TECH 25Gbps S-SFP active optical cable assembly can provide new generation performance by higher date transfer rate. At the same time, it’s compatible with the port of SFP+, and need not to change the cage.
FEATURES & BENEFITS
- Hot Pluggable SFP form factor in the cable ends
- Supports auto-rate detection for both 25.78125Gbps and 10.3125Gbps operation
- Low Power Dissipation, MAX 0.8W Each End
- Operating Case Temperature: 0℃ to +70℃
了解更多
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA0SS2102-SD-R | S-SFP | AOC | 0.5m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2101-SD-R | S-SFP | AOC | 1m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2201-SD-R | S-SFP | AOC | 2m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2301-SD-R | S-SFP | AOC | 3m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2401-SD-R | S-SFP | AOC | 5m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2501-SD-R | S-SFP | AOC | 7m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2601-SD-R | S-SFP | AOC | 10m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2701-SD-R | S-SFP | AOC | 15m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2801-SD-R | S-SFP | AOC | 20m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2901-SD-R | S-SFP | AOC | 30m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2902-SD-R | S-SFP | AOC | 70m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0SS2903-SD-R | S-SFP | AOC | 100m | Ethernet | 25Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
