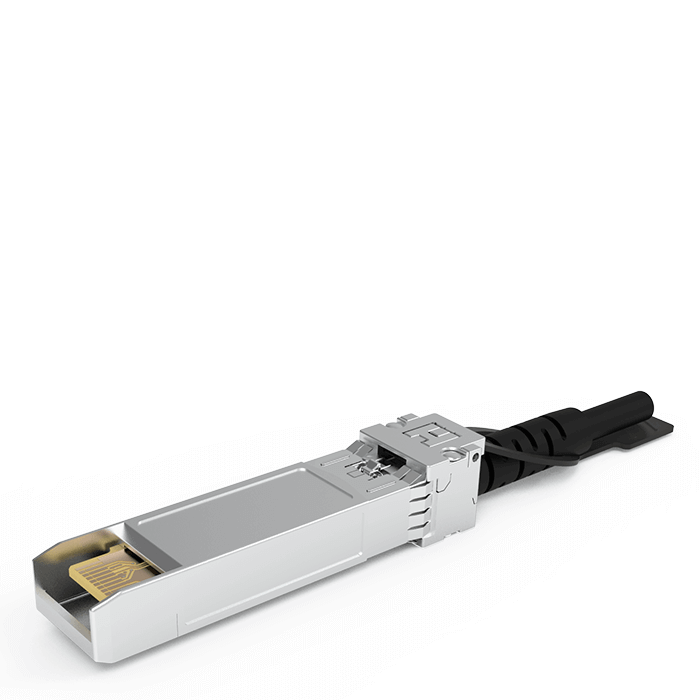

SFP+ Copper Cable

Luxshare-TECH SFP+ copper cable is widely adopted in the interconnection between switch unit and computing nodes(10Gbps for Ethernet), the interconnection between server and storage(16Gbps for Fiber Channel) in datacenter and Enterprise IT infranstructure, and adopted in HPC system based on IBTA. It is a high reliability, high aggregate data bandwidth and cost-saving solution.


FEATURES & BENEFITS
  • Compliant with SFF-8431, SFF-8432
  • Compliant with IEEE802.3ba
  • 1x (1 channel) base configuration
  • Higher speed storage applications
  • I2C for EEPROM communication
  • 100 Ohms differential impedance
  • Pull to Release latch design
  • 32AWG and 24AWG cable available
  • Operation temperature: 0℃~+70℃
  • Storage Ambient Temperature: -40℃~+85℃
  • Relative Humidity< 80%
  • 360 degree EMI crimping shielding
  • All materials comply with RoHS2.0
了解更多

Product Numbers Product Description
LA0SFXXX-SD-R SFP 10G 30AWG 1.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 10G 30AWG 2.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 10G 30AWG 3.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 10G 30AWG 5.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 25G 30AWG 1.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 25G 30AWG 2.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 25G 30AWG 3.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 25G 26AWG 5.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 25G 26AWG 7.0M Active Cable Assembly
LA0SFXXX-SD-R SFP 50G 30AWG 1.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 50G 30AWG 2.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 50G 26AWG 3.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 50G 24AWG 5.0M Passive Cable Assembly m
LA0SFXXX-SD-R SFP 100G 30AWG 1.0M Passive Cable Assembly
LA0SFXXX-SD-R SFP 100G 28AWG 1.4M Passive Cable Assembly
LA0SFXXX-SD-R SFP 100G 26AWG 2.0M Passive Cable Assembly
