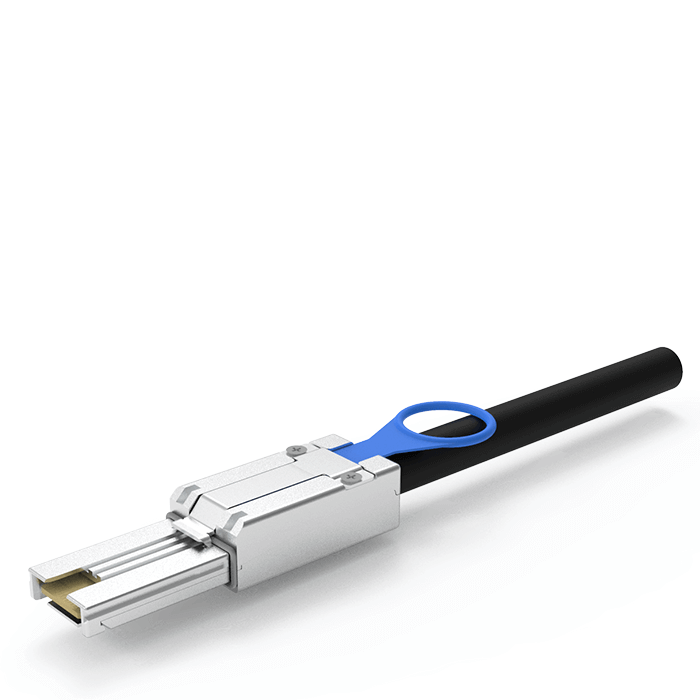

External MiniSAS Cable

Luxshare-TECH’s external MiniSAS cable assembly address the demand for a reliable, cost-effective, high-speed serial I/O that support SAS2.1(6Gbps). It achieves the external interconnection between server and storage devices. Luxshare-TECH external MiniSAS cable assembly conform to Serial Attached SCSI (SAS) protocol for multilane ports and the mechanical requirements defined in the SFF-8086 and SFF-8088 specification.

  • Compliant with SFF-8086, SFF-8088
  • 4x (4 channels) base configuration
  • High speed storage applications
  • Support External SAS2.1,rate up to 6G
  • 100 Ohms differential impedance
  • Pull to Release latch design
  • 30AWG, 28AWG and 26AWG cable available
  • Operation temperature -20℃~+80℃
  • Storage Ambient Temperature:-40℃~+85℃
  • Relative Humidity< 80%
  • 360 degree EMI crimping shielding
  • All parts meet RoHS or PCB and raw cable meet HF, other parts meet RoHS

Product Numbers Product Description
LA0ESXXX-SD-R MINISAS 30AWG 1.0M Passive Cable Assembly
LA0ESXXX-SD-R MINISAS 30AWG 3.0M Passive Cable Assembly
LA0ESXXX-SD-R MINISAS 26AWG 5.0M Passive Cable Assembly
