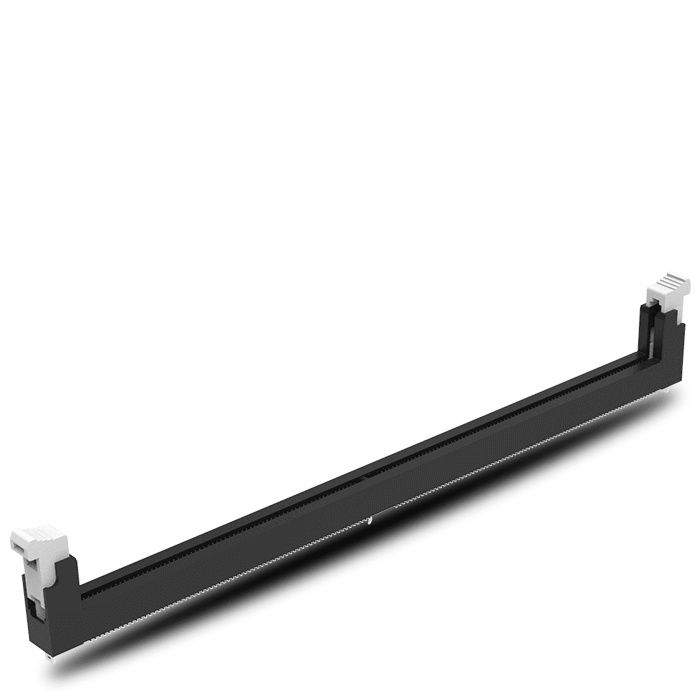

DDR4 Connector

Luxshare-TECH DDR4 connectors could support multi-form of DDR4 modules including UDIMM, RDIMM and LRDIMM. Based on excellent performance and diverse options, Luxshare DDR4 product family are widely adopted in PCs, servers, workstations, storage, and embedded applications in communications and industrial equipment.

  • Through Hole and SMT options avaliable, support diverse hardware design requirement
  • Various pin tail lengths for different PCB thickness
  • Lower insertion force, easier for module insertion and enough retention force for better reliability
  • Narrow housing solutions,Saves board space and benefits air-flow

Product Numbers Product Description
PDRBB9-5300-003-0H DDR4+288pin+SMT+30u'' Au+MT+S-L,Tray+HF
PDRBB9-3300-000-0H DDR4+288pin+TH+30u'' Au+Boardlock+S-L
PDRBB9-3301-000-0H  DDR4+288pin+TH 25 ℃+30u Au+with boardlock
PDRBB9-3302-000-0H  DDR4 TH 288Pin 30u'' Au with Boardlock
