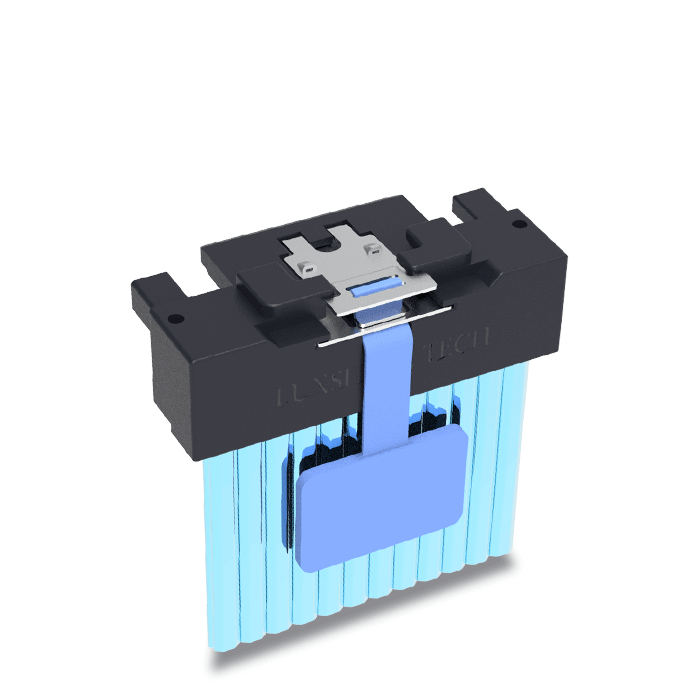

OmniEdge™ ASM Cable
Luxshare-TECH design Omniedge™ ASM as a new internal
cable to board or board to board interconnection product
family for next Gen SAS, PCIe, Ethernet etc applicaion.
Omniedge™ ASM is of very excellent SI perfomance so as to
support SAS4.0, PCIeGen4/Gen5, even PCIeGen6 in future.
The high speed per lane of ASM could support 32Gbps
NRZ, 56G PAM4 data rate with potential up to 64G PAM4 &
112G PAM4.
FEATURES & BENEFITS
- Support cable to board application: 1.57mm PCB card thickness
- Multiple channels are optional: 4X/6X(38pos),8X/12X(74pos),16X/20X(124pos) more customized requirement available
- Small size design with great robustness : Pitch 0.6mm connector and max 25N wrenching test
- Excellent SI performance: Signal rates up to PCIe5 32Gbps, SAS 4.0 24Gbps and 56 Gbps PAM4 and 112 GT/s PAM4
- Compatible with many different industry standards and protocols including SAS, PCIe and Ethernet
- Straight, 45degree, right angle, cable plug are optional
- 85 ohm and 92ohm impedances are optional
- 30-34AWG cables are available for both discrete and ribbon cable
- RoHS compliant. Halogen free is available on request
- Proven anti skew-mate capability
- Simple structural keying/polarizing of very strong mechanical feature
- Robust and stable pull-to-release latching
- Board end connector accepts 1.57mm Add-In-Card as well for increased application flexibility
- Provide connector mated with customer paddle card and board connector mated with cable options
