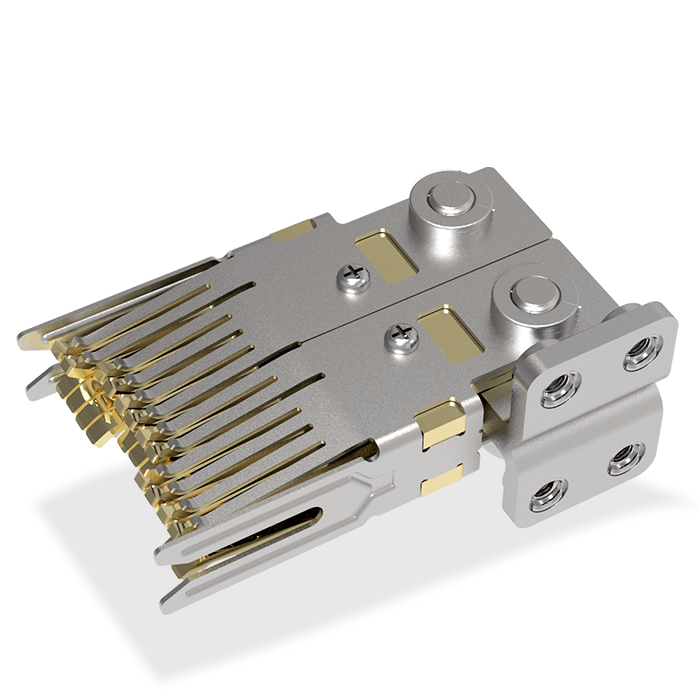

Power Busbar Connector

Luxshare-TECH's power busbar connector, its contacts with very high conductivity pure copper. Silver plating and independent support beams enable the current carrying capacity up to 700A and independent helper springs ensure contact with busbar when busbar insert into it from nonparallel position. The contact beams with “independent”stainless steel helper spring clip ensure proper normal force level and very low, stable contact resistance for each contact beam in product life cycle.


FEATURES & BENEFITS
  • Cable end configuration available
  • Current carrying capacity up to 120A
  • Independent helper springs ensure contact with busbar well
了解更多

Product Numbers Product Description
PPB000-002T-200-0R POWER Conn For 200A, Au 30u", solder type
PPB000-006T-200-0R POWER Conn For 200A, Au 30u", screw mounting type
PPB000-0403-100-0R  POWER Conn For 700A,the contact without bump, Au 30u"
PPB000-0403-103-0R  POWER Conn For 700A,the contact with bump, Au 30u"
PPB000-0403-101-0R POWER Conn For 700A,the contact with bump, Au 30u", with plastic cover
