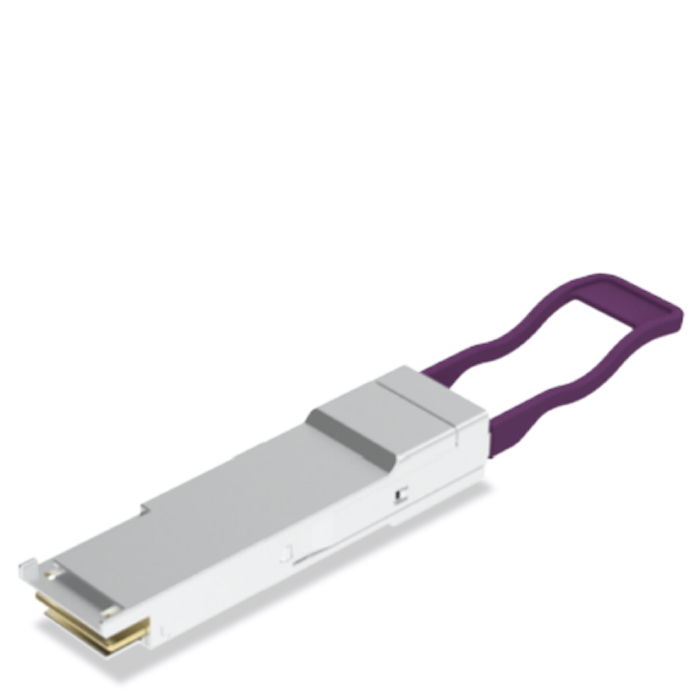

100G S-QSFP28 PSM4

Luxshare-TECH 100Gbps S-QSFP PSM4 100G transceiver is designed for 100G Ethernet links with long-reach communication. The link distance up to 500m with parallel single-mode fiber. It integrates four data lanes in each direction with each lane operating at 25.78125 Gbps.

  • Hot Pluggable QSFP form factor
  • 1310nm DFB Laser/PIN Photo Detector
  • Supports 25.78125Gbps per channel
  • Maximum power consumption 3.5W
  • Operating Case Temperature: 0℃ to +70℃
  • Up to 500m transmission with SMF
  • Single MPO12 receptacles

PN Package Description Reach Protocol Support Data Rate Temp Power Consumption Optical Connector Transceiver Receiver Wavelength
PA01QSB01-NC-T S-QSFP PSM4 500m Ethernet 100Gbps 0-70℃ 3.5W MPO(SMF) DFB PIN 1310nm
