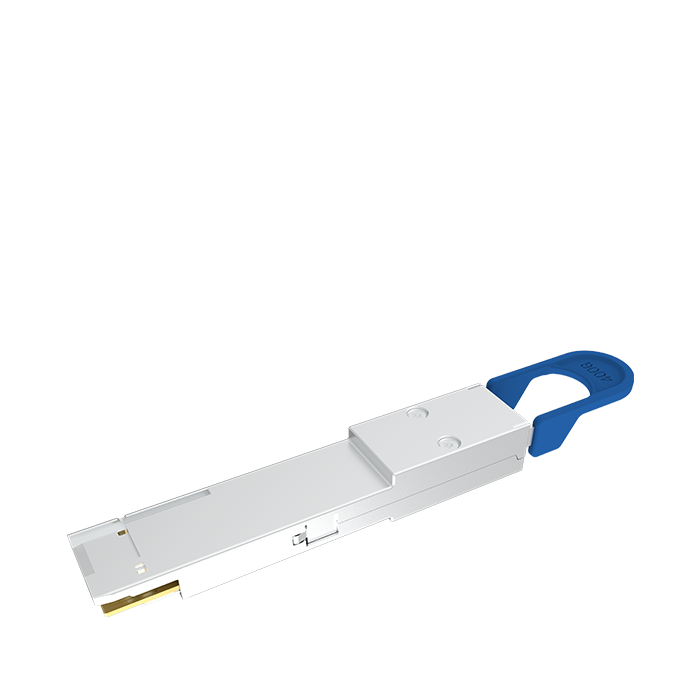

400G QSFP-DD DR4

Luxshare-TECH 400Gbps QSFP-DD optical transceiver can provide new generation performance of QSFP-DD by higher date transfer rate. 400G QSFPDD DR4 is designed for 400G Ethernet links communication. The link distance up to 500m with single-mode fiber. It integrates four optical lanes and eight electrical lanes with 400Gbps aggregate bandwidth. The transceiver using high power 1310nm DFB Laser . The optical interface uses a APC MPO-12 connector and the electrical interface uses a 76 pins type connector. All the design is based on the industry standard specifications, such as SFF-8679, CMIS4.0 and QSFP-DD MSA specification.


FEATURES & BENEFITS
  • Hot Pluggable QSFP-DD form factor
  • Supports 425Gbps aggregate bit
  • Single APC MPO-12 receptacle
  • Up to 500m SMF cable lengths for 400G-BASE DR4 application
  • Complies with CMIS4.0
  • Operating Case temperature:0℃ to +70℃
了解更多

Part Number Form Factor Description Reach Data Rate Temp(℃) Power Consumption(W) Optical Connector Wavelength(nm)
PA0BDSB01-NC-R QSFP-DD DR4 SMF 500m 400Gbps 0~70℃ 10W APC MPO-12 1310nm
