OCulink Connector

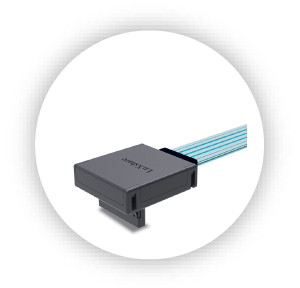

OCuLink is a high speed and high density interconnection solution that be adopted in PCIe application. Luxshare-TECH provide not only the board connector but the customized corresponding cable for PCIe Gen3 interconnection. The internal and external Small Form Factor PCIe connectors and cables optimized for the client and mobile market that is OCulink focus on. Luxshare's OCulink meets the PCIe 3.0, 8GT/s, enabling optical and copper technology to coexist.

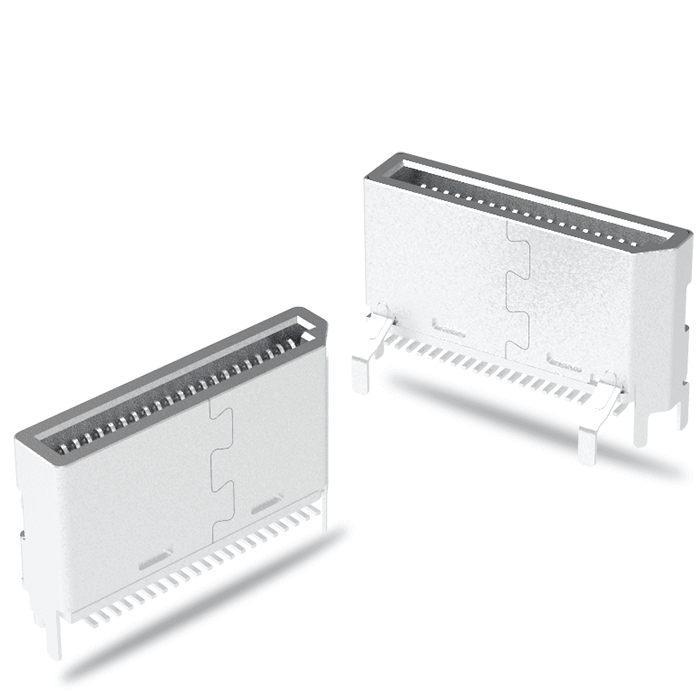

  • High density, 4mm height connector to save space
  • 42pin (4i),Vertical and Right Angle types options available
  • Shell with SMT and Through hole options support wide variety of applications
  • Supports PCIe 3.0 (8GT/s)

Product Numbers Product Description
PPC050-4233-TX2-1H  Vertical x4
PPC050-4233-TX3-1H Vertical x4 Enhanced type
PPC050-4243-TX2-1H Right Angle x4
