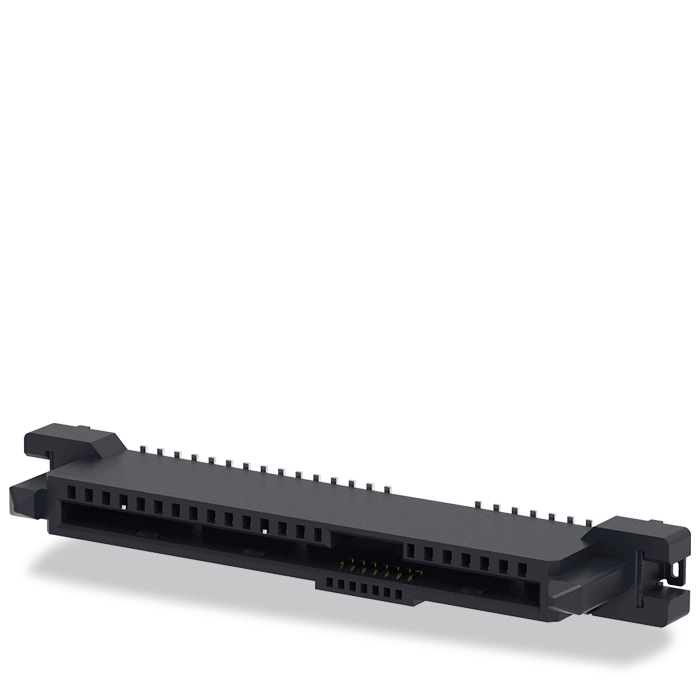

U.3 Connector

U.3 connector meets SAS 4.0(24Gb/s) and PCIe 4.0(16GT/s) speeds is used in servers. The 68-position, SAS/PCIe receptacle implementation of high speed Serial Attached SCSI (SAS) hard disk drive (HDD) interface as well as Peripheral Component Express (PCIe)-based devices. The molded guide post allows device plug and receptacle to selfalign during mating process.

FEATURES & BENEFITS

• Designed to support hot-plugging and blind mating
• PCIe/SAS compatible receptacle and applicable to SAS, PCIe and SATA devices meet different needs of applications
• Supports data rates up to SAS/PCIe 4.0
• Footprint backward compatible to 12G, 6G and 3G SAS connectors,Same interface can be used for cost-effective storage
• HDDs as well as higher performance server SSDs
