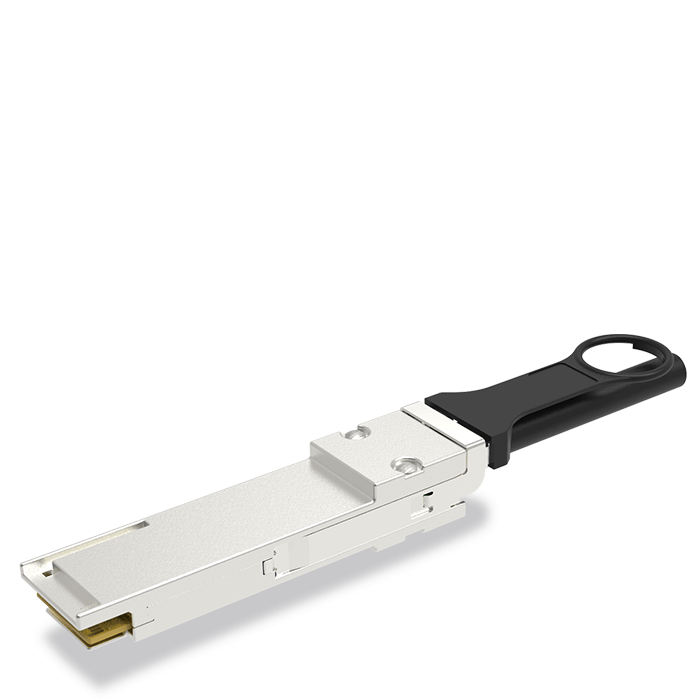

QSFP+ Copper Cable

Luxshare-TECH 40/56Gbps QSFP+ copper cable is widely adopted in the interconnection between switch unit and computing nodes, the interconnection amongswitch units in datacenter based on Ethernet, and adopted in Supercomputing system based on IBTA. It is a high reliability, high aggregate data bandwidth and cost-saving solution.

FEATURES & BENEFITS

• Compliant with SFF-8436
• Compliant with IEEE802.3ba
• Up to 10Gbps data rate per channel
• Mating with the standard 38-pin QSFP+ connenctor
• Copper link length up to 3m for 30AWG or 5m for 26AWG (DAC), 26AWG 10m(ACC)
• Single +3.3V power supply
• Low insertion loss, crosstalk
• I2C based two-wire serial interface of EEPROM signal
• Operating temperature: 0℃~+70℃
• Storage Ambient Temperature: -40℃~+85℃
• Power level I: Less than 30mw
• All materials comply with RoHS2.0
