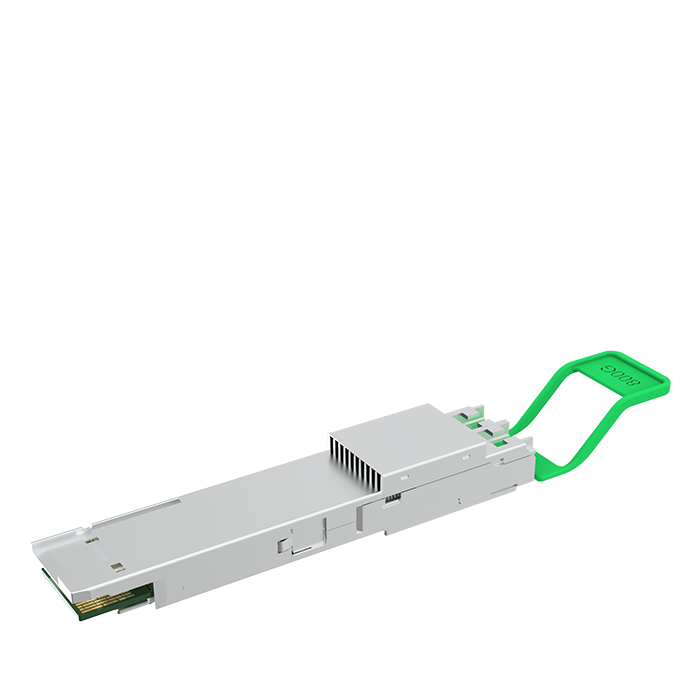

800G QSFP-DD 2xFR4

Luxshare-TECH 800Gbps 2xFR4 optical transceiver uses QSFP-DD800 form factor. It is designed for 800G Ethernet links communication and supports 850Gbps aggregate bit. The link distance up to 2km with single-mode fiber. It integrates eight optical lanes and eight electrical lanes which each support 100Gbps data rate. The transceiver using high performance and low power 7nm DSP. All the design is based on the industry standard specifications, such as CMIS4.0 and QSFP-DD800 MSA specification.

  • Hot Pluggable QSFP-DD800 form factor
  • Supports 850Gbps aggregate bit
  • Up to 2km SMF cable lengths for 800G-BASE 2xFR4 application
  • Complies with CMIS4.0
  • Operating Case temperature:0℃ to +70℃

Part Number Form Factor Description Reach Data Rate Temp(℃) Power Consumption(W) Optical Connector Wavelength(nm)
PA0BDSB01-NC-R QSFP-DD DR4 SMF 500m 400Gbps 0~70℃ 10W APC MPO-12 1310nm
