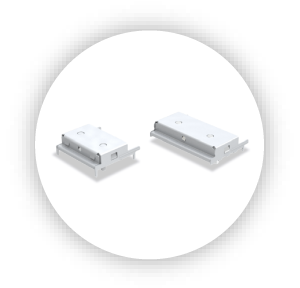

Omniedge™ ULP Cable
In order to meet higher density demand in networking equipment and server, Luxshare-TECH develops Omniedge™ ULP as a new interconnection system including connector and cable assemblies to support higher signal transmission, which can be used in application of 24Gbps SAS signal or 16GT/s PCIe signal. Besides, it also can support the 56GT/s PAM4.
FEATURES & BENEFITS
- Support cable to board application:0.8mm PCB card thickness
- Multiple channels are optional: 8i and 12i are available for different application
- Small size design with great robustness : Pitch 0.6mm connector and max 25N wrenching test
- Excellent SI performance: Signal rates up to PCIe4 16GT/s, SAS 4.0 24Gbps and 56GT/s PAM4
- Compatible with diverse industry standards and protocols including SAS, PCIe
- Straight and customization cable plug are optional
- 85 ohm and 92 ohm impedances are optional
- 30-34AWG cables are available for both discrete and ribbon cable
- RoHS compliant. Halogen free is available on request
了解更多
| Product Numbers | Product Description |
| LA0XXXXX-SD-R | Internal Omniedge™ ULP 8i Cable Assembly 1.0 m 30 AWG |
| LA0XXXXX-SD-R | Internal Omniedge™ ULP 12i Cable Assembly 1.0 m 30 AWG |
| LA0XXXXX-SD-R | Internal Omniedge™ ULP 8i Cable Assembly 0.7 m 32 AWG |
| LA0XXXXX-SD-R | Internal Omniedge™ ULP 12i Cable Assembly 0.7 m 32 AWG |
| LA0XXXXX-SD-R | Internal Omniedge™ ULP 8i Cable Assembly 0.5 m 34 AWG |
| LA0XXXXX-SD-R | Internal Omniedge™ ULP 12i Cable Assembly 0.5 m 34 AWG |
