Gen-Z Series

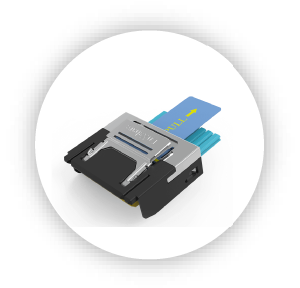

Luxshare-TECH Gen-Z products family is high density, high speed performance, paddle card edge connector series for next Gen. PCIe Gen.4, Gen.5 application, evolved up to the further PCIe Gen.6. The 0.60mm Gen-Z connectors conform to SFF-TA-1002, OCP NIC 3.0 specification. Luxshare-TECH Gen-Z provides the full range of configuration: 1C，2C，4C，4C+，8C and HP ( high power pin ) options.
FEATURES & BENEFITS
- Signal pin pitch at 0.60mm with current rating of 1.1A, up to 12 pins for power application
- Signal pins options from 56, 84, 140, 168, 280
- High power pin optionprovide additional power supply 55A @ 12/48VDC
- Customization of pin count upon request
- Small form factor
- Discrete pin design could support all high speed differential pairs application
- Supports 1.6mm thick mating board
- Provides power for module card
- Serves as a space-saving connector
- Supports single-ended, high speed differential pairs up to 32G NRZ, 56G PAM4, 112G PAM4
- For most standard BTB applications
了解更多
| Product Numbers | Product Description |
| PGZB56-5300-000-1H | 1C VERTICAL Gen-Z Conn. With shell |
| PGZB84-5300-000-1H | 2C VERTICAL Gen-Z Conn. With shell |
| PGZBA4-5300-000-1H | 4C VERTICAL Gen-Z Conn.With shell |
| PGZB56-5300-004-1H | 1C VERTICAL Gen-Z Conn. Without shell |
| PGZB84-5300-004-1H | 2C VERTICAL Gen-Z Conn. Without shell |
| PGZBA4-5300-004-1H | 4C VERTICAL Gen-Z Conn. Without shell |
| PGZB56-6300-000-1H | 1C rightangle Gen-Z Conn.With shell |
| PGZB84-6300-000-1H | 2C rightangle Gen-Z Conn.With shell |
| PGZBA4-6300-000-1H | 4C rightangle Gen-Z Conn.With shell |
| PGZB56-6300-004-1H | 1C rightangle Gen-Z Conn.Without shell |
| PGZB84-6300-004-1H | 2C rightangle Gen-Z Conn.Without shell |
| PGZBA4-6300-004-1H | 4C rightangle Gen-Z Conn.Without shell |
| PGZBA4-9300-005-1H | 4C straddle Mount. 2.36mm |
| PGZBA6-9300-005-1H | 4C+ straddle Mount.2.36mm |
| PGZB56-1301-000-0H | Gen-Z 1C orthogonal type, Au 30u" |
