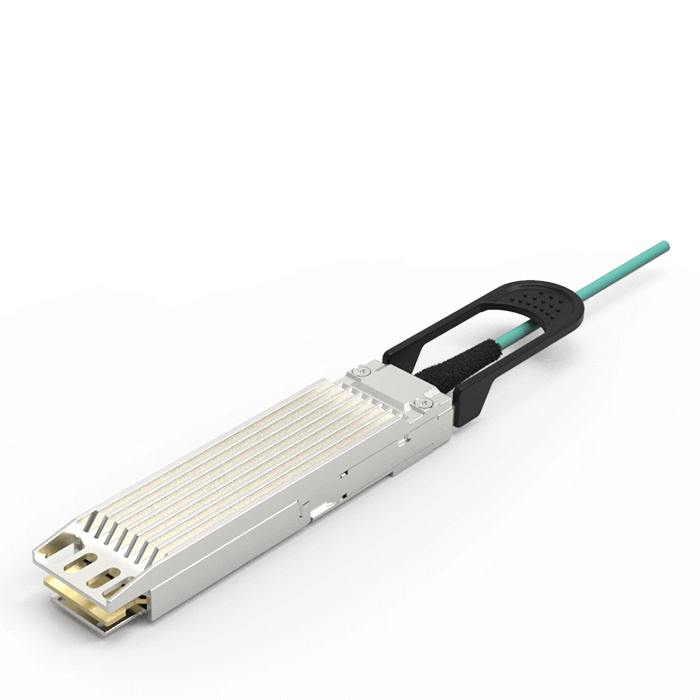

400G U-OSFP AOC
Luxshare-TECH 400Gbps U-OSFP active optical cable can provide new generation performance of OSFP by higher date transfer rate.
FEATURES & BENEFITS
- Hot Pluggable OSFP cable end/li>
- Supports 425Gb/s aggregate bit
- Power Dissipation, Typ. 10.0W
- Operating Case Temperature: 0℃ to 70℃
- 8x50G PAM4 VCSEL/PIN photo detector
- Compliant to OSFP MSA Rev 2.0
- CMIS3.0: Management Interface
- SFF-8679: General Electrical
- IEEE 802.3cd: Physical Layer Specifications and Management Parameters
- ROHS-6: Environment Safety
了解更多
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength | Note |
| PA0FFB101-SD-R | U-OSFP | AOC | 1m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB301-SD-R | U-OSFP | AOC | 3m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB401-SD-R | U-OSFP | AOC | 5m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB501-SD-R | U-OSFP | AOC | 7m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB601-SD-R | U-OSFP | AOC | 10m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB701-SD-R | U-OSFP | AOC | 15m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB801-SD-R | U-OSFP | AOC | 20m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB901-SD-R | U-OSFP | AOC | 30m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB102-SD-R | U-OSFP | AOC | 1m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB302-SD-R | U-OSFP | AOC | 3m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB402-SD-R | U-OSFP | AOC | 5m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB502-SD-R | U-OSFP | AOC | 7m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB602-SD-R | U-OSFP | AOC | 10m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB702-SD-R | U-OSFP | AOC | 15m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB802-SD-R | U-OSFP | AOC | 20m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
| PA0FFB902-SD-R | U-OSFP | AOC | 30m | Ethernet | 400Gbps | 0-70℃ | 12W | NA | VCSEL | PIN | 850nm | DSP Version Type A |
