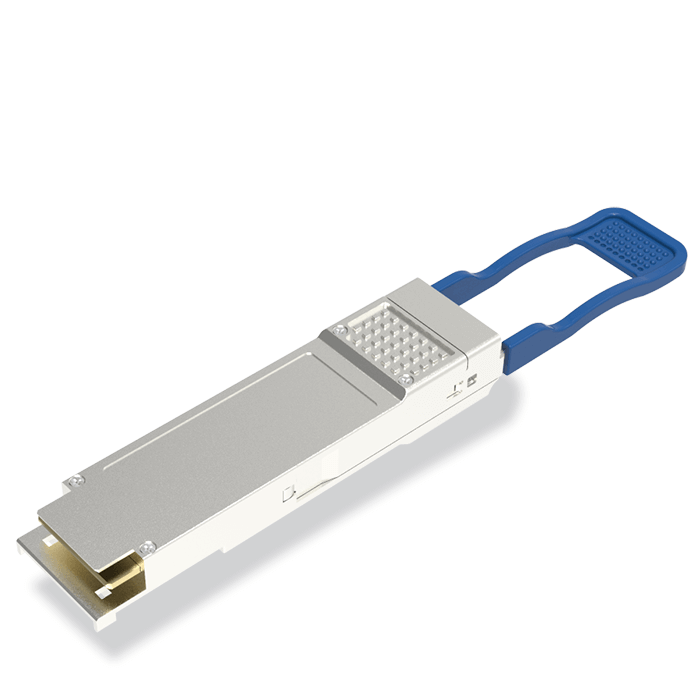

40G QSFP+ LR4

Luxshare-TECH 40Gbps QSFP+ transceiver is designed for 40G Ethernet links with long-reach communiction. The link distance up to 10km with singlemode fiber. It integrates four data lanes in each direction with each lane operating at 10.3125Gbps.

FEATURES & BENEFITS

Hot Pluggable QSFP+ form factor
DFB Laser/PIN Photo Detector
Supports 10.3125Gbps per channel
Maximum power consumption 3.5W
Up to 10km transmission on SMF
Operating Case Temperature: 0℃ to +70℃
Duplex LC receptacles

了解更多

Standard Product
Applications

PN	Package	Description	Reach	Protocol Support	Data Rate	Temp	Power Consumption	Optical Connector	Transceiver	Receiver	Wavelength
PA00QSD01-NC-T	QSFP+	LR4	10km	Ethernet	40Gbps	0-70℃	3.5W	LC	DFB	PIN	1270-1330nm
