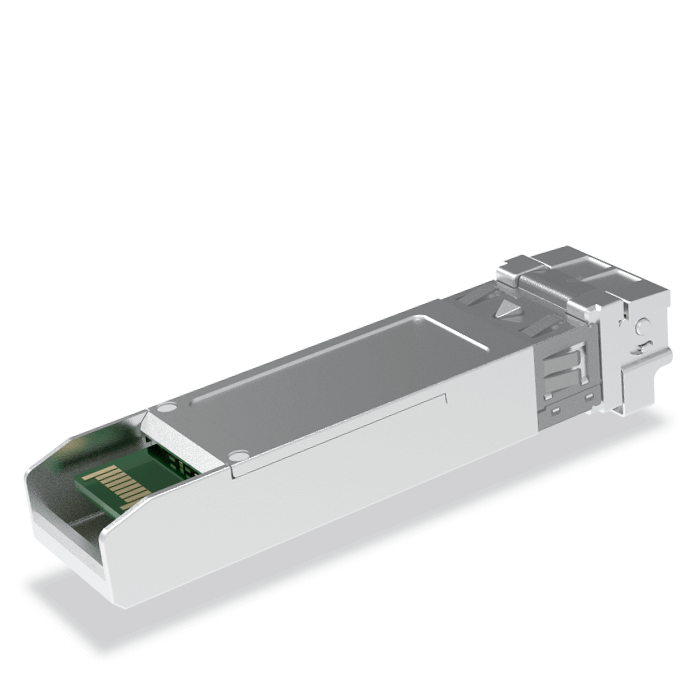

25G S-SFP28 SR

Luxshare-TECH 25Gbps S-SFP optical transceiver is designed for 25G Ethernet links with very high port density based on the new electrical and mechanical specification for the SFF-8431 and SFF-8432 respectively. The transceiver utilizes 850nm VCSEL and PIN Detect technology to provide the 70m and 100m links on OM3 and OM4 MMF respectively.

  • Hot Pluggable SFP form factor
  • Supports auto-rate detection for both 25.78125Gbps and 10.3125Gbps operation
  • Up to 70m transmission with OM3 multimode fiber
  • Up to 100m transmission with OM4 multimode fiber
  • 850nm VCSEL Laser/PIN Photo Detector
  • Low Power Dissipation, MAX 0.8W
  • Operating Case Temperature: 0℃ to +70℃

PN Package Description Reach Protocol Support Data Rate Temp Power Consumption Optical Connector Transceiver Receiver Wavelength
PA02SMA01-SD-R S-SFP SR 70m(OM3)/100m(OM4) Ethernet 25Gbps 0-70℃ 0.8W LC VCSEL PIN 850nm
PCR2SMA02-SD-R S-SFP SW 70m(OM3)/100m(OM4) Fiber Channe 28Gbps 0-70℃ 0.8W LC VCSEL PIN 850nm
