External MiniSAS-HD (24G)

Luxshare-TECH‘s MiniSAS-HD external I/O connector is designed for high density-high speed IO interconnection. The external MiniSAS-HD interface supports 24Gbps per lane for SAS4.0 application and 16Gbps per lane for PCIe4.0 application. Luxshare-TECH offers 1x1(4x), 1x2(8x), and 1x4(16x) configuration for the interconnection between server and storage, or AI architecture etc.

FEATURES & BENEFITS

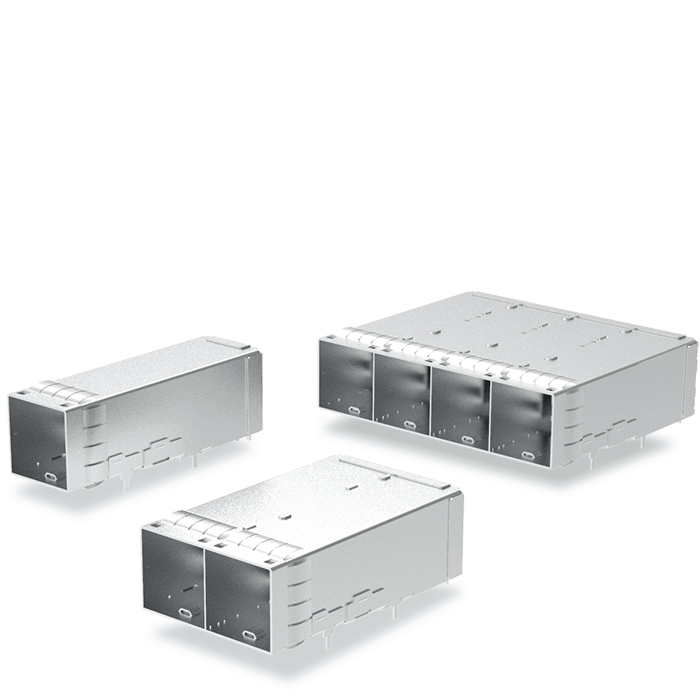

Provide 1x1(4x), 1x2(8x), 1x4(16x) configuration
Adopted in the external interconnection between devices based SAS4.0 and PCIe4.0 protocal
92Ohm impedance design which can compatible both SAS and PCIe

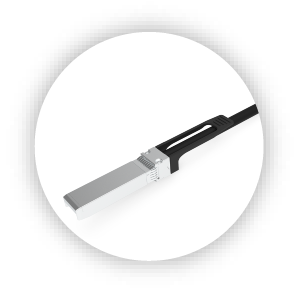

Supports up to a maximum of 5 meter lengths for passive cable
