400G QSFP112 DR4

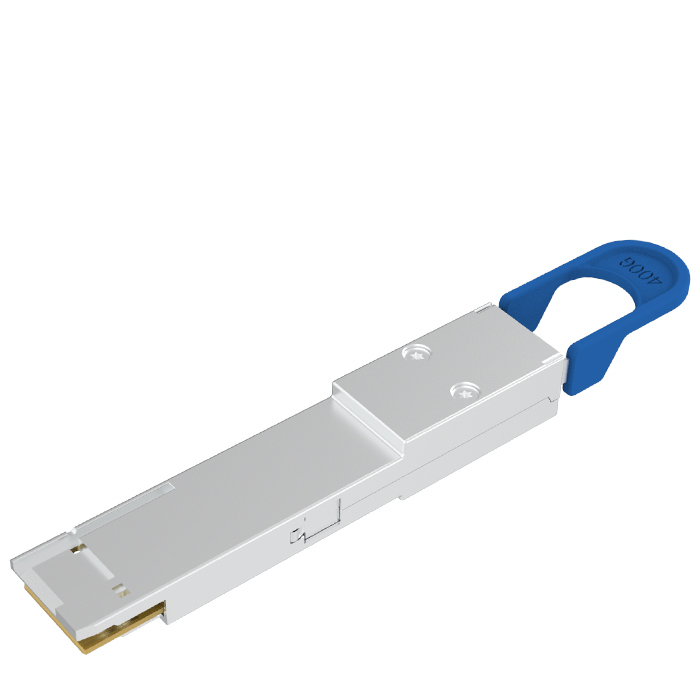

Luxshare-TECH 400Gbps QSFP-112 optical transceiver can provide new generation performance of QSFP-112 by higher date transfer rate. 400G QSFP112 DR4 is designed for 400G Ethernet links communication. The link distance up to 500m with single-mode fiber. It support 4x106Gbps aggregate bandwidth. The transceiver using high power 1310nm DFB Laser. The optical interface uses a APC MPO-12 connector and the electrical interface uses a 38 pins type connector. All the design is based on the industry standard specifications, such as SFF-8679, CMIS4.0 and QSFP-112 MSA specification.

  • Hot Pluggable QSFP-112 form factor
  • Supports 425Gbps aggregate bit
  • Single APC MPO-12 receptacle
  • Up to 500m SMF cable lengths for 400G-BASE DR4 application
  • Complies with CMIS4.0
  • Operating Case temperature:0℃ to +70℃

Part Number Form Factor Description Reach Data Rate Temp Power Consumption Optical Connector Wavelength
PA04QSB01-NC-R QSFP-112 DR4 SMF 500m 400Gbps 0~70℃ 10W APC MPO-12 1310nm
