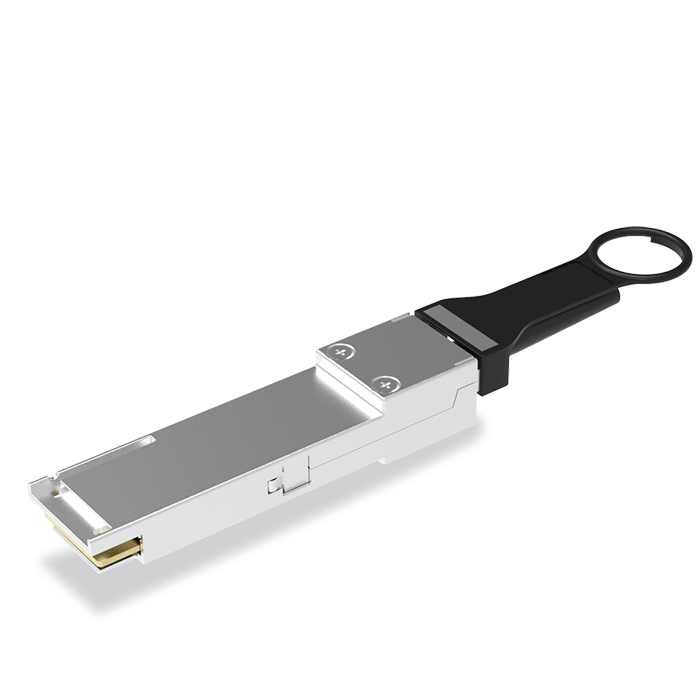

40G QSFP+ AOC
Luxshare-TECH QSFP+ active optical cables provide a Four-Channel, Pluggable, Parallel solution for 40G Ethernet applications.
FEATURES & BENEFITS
- Hot Pluggable QSFP Cable End
- Supports 10.3125Gbps per channel
- Low Power Dissipation, MAX 1.5W Each End
了解更多
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA0QQ0102-SD-R | QSFP+ | AOC | 0.5m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0101-SD-R | QSFP+ | AOC | 1m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0201-SD-R | QSFP+ | AOC | 2m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0301-SD-R | QSFP+ | AOC | 3m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0401-SD-R | QSFP+ | AOC | 5m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0501-SD-R | QSFP+ | AOC | 7m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0601-SD-R | QSFP+ | AOC | 10m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0701-SD-R | QSFP+ | AOC | 15m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0801-SD-R | QSFP+ | AOC | 20m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0901-SD-R | QSFP+ | AOC | 30m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0902-SD-R | QSFP+ | AOC | 50m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0903-SD-R | QSFP+ | AOC | 70m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0904-SD-R | QSFP+ | AOC | 100m | Ethernet | 40Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0111-SD-R | QSFP+ | AOC | 1m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0311-SD-R | QSFP+ | AOC | 3m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0411-SD-R | QSFP+ | AOC | 5m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0511-SD-R | QSFP+ | AOC | 7m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0611-SD-R | QSFP+ | AOC | 10m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0711-SD-R | QSFP+ | AOC | 15m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0811-SD-R | QSFP+ | AOC | 2m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0111-SD-R | QSFP+ | AOC | 1m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0911-SD-R | QSFP+ | AOC | 30m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0916-SD-R | QSFP+ | AOC | 50m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
| PA0QQ0917-SD-R | QSFP+ | AOC | 100m | InfiniBand | 56Gbps | 0-70℃ | 1.5W | NA | VCSEL | PIN | 850nm |
