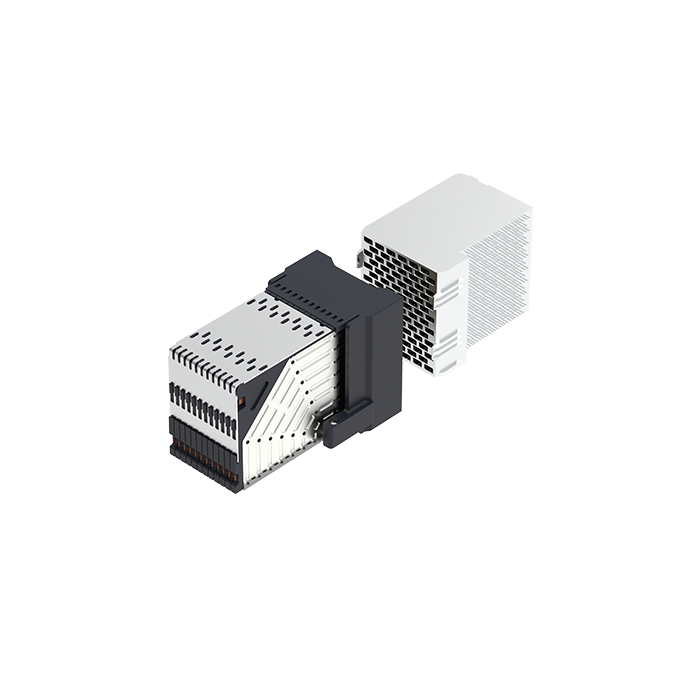

Intrepid BP Connector

LUXTECH OWN INTERFACE 112Gb/s BACKPLANE INTERCONNECT TECHNOLOGY.
Intrepid® revolutionary architecture sets the benchmark for signal integrity performance in backplane interconnects. Exhibiting smooth linear transmission beyond 40GHz, the lowest crosstalk and IL in the market which support today’s and future’s data rates. Intrepid® is design for provides a flexible and scalable platform through use of a simplified connector construction,which can support traditional backplanes, cable backplanes, orthogonal configurations for telecom & Datacom platform.


FEATURES & BENEFITS
  • Data rate up to 112G PAM4 support today’s and future’s data rates
  • Impedance 92ohm
  • Fully shielded structure design for better SI performance
  • Stronger structural design prevents bent pin risk
  • Unique sinking design provides better heat dissipation design
  • High density design 2.0mm column pitch and 4.0mm Pair pitch
  • Impedance control over 1.5mm connector de-mating
了解更多

Product Numbers Product Description
PTP064-1510-000-0H 4P8C VH (56G)
PTP064-1520-000-0H 4P8C VH (112G)
PTP064-5510-000-0H 4P8C RAR (56G)
PTP064-5520-000-0H 4P8C RAR (112G)
PTP192-5510-000-0H 6P16C RAR (56G)
PTP192-5520-000-0H 6P16C RAR (112G)
PTP192-5510-100-0H 8P12C OD (56G)
PTP192-5520-100-0H 8P12C OD (112G)
PTP096-1510-002-0H 6P8C VH (56G)
