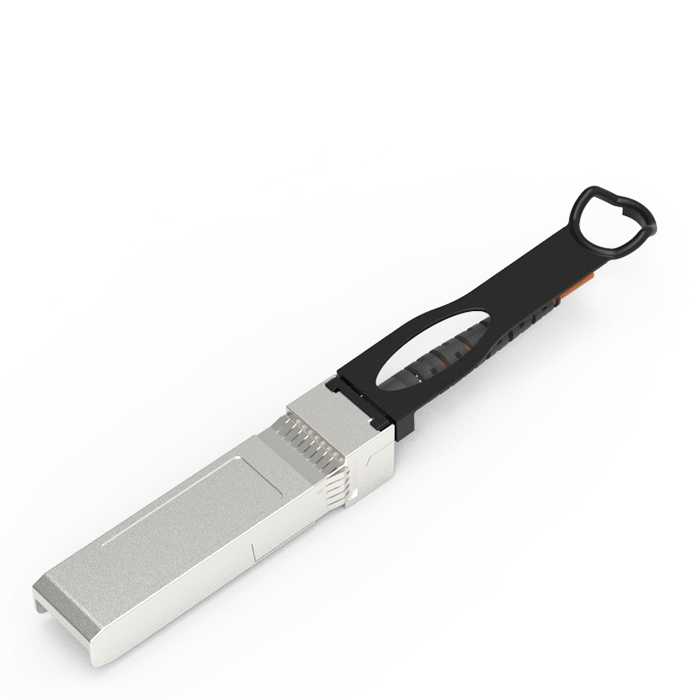

10G SFP+ AOC
Luxshare-TECH 10Gbps SFP+ active optical cable can provide good performance and quality.
FEATURES & BENEFITS
- Hot Pluggable SFP+ Cable End
- Supports 10.3125Gbps per channel
- Low Power Dissipation, MAX 0.8W Each End
- Operating Case Temperature: 0℃ to +70℃
了解更多
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA0QS1102-SD-T | SFP+ | AOC | 0.5m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1101-SD-T | SFP+ | AOC | 1m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1201-SD-T | SFP+ | AOC | 2m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1301-SD-T | SFP+ | AOC | 3m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1401-SD-T | SFP+ | AOC | 5m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1501-SD-T | SFP+ | AOC | 7m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1601-SD-T | SFP+ | AOC | 10m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1701-SD-T | SFP+ | AOC | 15m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1801-SD-T | SFP+ | AOC | 20m | Ethernet | T20Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
| PA0QS1901-SD-T | SFP+ | AOC | 30m | Ethernet | T10Gbps | 0-70℃ | 0.8W | NA | VCSEL | PIN | 850nm |
