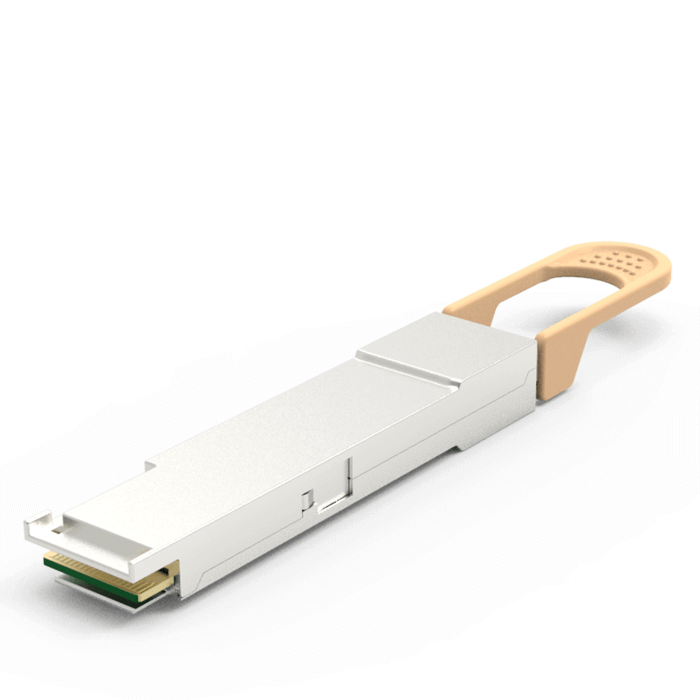

40G QSFP+ eSR4

Luxshare-TECH 40Gbps QSFP+ eSR4 transceiver is designed for 40G Ethernet links with short-reach communication. The link distance up to 300m and 400m over OM3 and OM4 respectively.

  • Hot Pluggable QSFP+ form factor
  • Support 10.3125Gbps per channel
  • Low Power Dissipation, MAX 1.3W
  • Operating Case Temperature: 0℃ to +70℃
  • Single MPO12 receptacle
  • Link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF

PN Package Description Reach Protocol Support Data Rate Temp Power Consumption Optical Connector Transceiver Receiver Wavelength
PA00QMA02-SD-R QSFP+ eSR4 300m (OM3)/400m(OM4) Ethernet 40Gbps 0-70℃ 1.3W MPO VCSEL PIN 850nm
