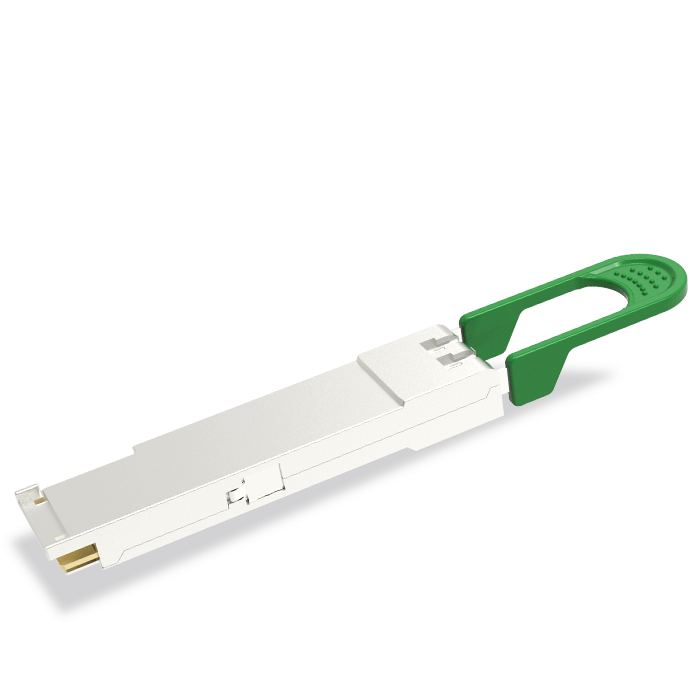

100G S-QSFP28 CWDM4-Lite

Luxshare-TECH 100Gbps S-QSFP CWDM4-Lite Optical transceiver is designed for 100G Ethernet links with long-reach communication. The link distance up to 500m with single-mode fiber. It integrates four data lanes in each direction with each lane operating at 25.78125 Gbps.

  • 4xCWDM DFB Laser/PIN Photo Detector
  • Supports 25.78125Gbps per channel
  • Maximum power consumption 3.5W
  • Up to 500m transmission with SMF
  • Operating Case Temperature: 0℃ to +70℃
  • Duplex LC receptacles

PN Package Description Reach Protocol Support Data Rate Temp Power Consumption Optical Connector Transceiver Receiver Wavelength
PA01QSB01-NC-T S-QSFP CWDM4-Lite 500m Ethernet 100Gbps 0-70℃ 3.5W LC DFB PIN 1270-1330nm
