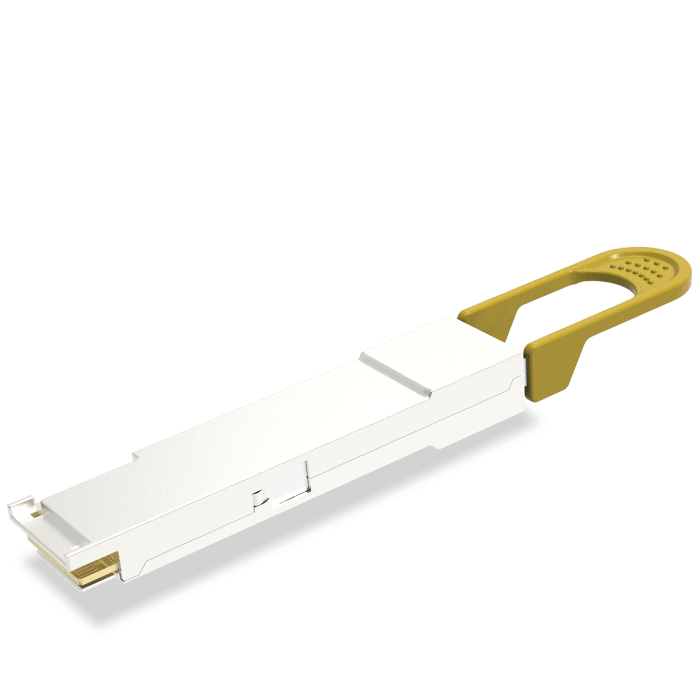

40G QSFP+ SR4

Luxshare-TECH 40Gbps QSFP+ SR4 transceiver is designed for 40G Ethernet links with short-reach communication. The link distance up to 100m and 150m over OM3 and OM4 respectively.

FEATURES & BENEFITS

Hot Pluggable QSFP+ form factor
Support 10.3125Gbps per channel
Low Power Dissipation, MAX 1.3W
Operating Case Temperature: 0℃ to +70℃
Single MPO12 receptacle
Link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF

了解更多

Standard Product
Applications

PN	Package	Description	Reach	Protocol Support	Data Rate	Temp	Power Consumption	Optical Connector	Transceiver	Receiver	Wavelength
PA00QMA01-SD-R	QSFP+	SR4	100m (OM3)/150m(OM4)	Ethernet	40Gbps	0-70℃	1.3W	MPO	VCSEL	PIN	850nm
PA00QMA03-SD-R	QSFP+	SW4	60m (OM3)	Fiber Channel	56Gbps	0-70℃	1.3W	MPO	VCSEL	PIN	850nm
