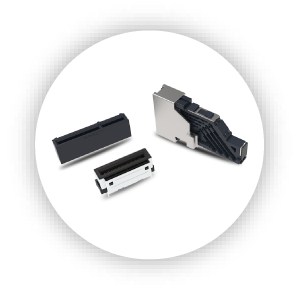

Gen-Z Cable

In an effort to keep up with the demands of higher performance and increasing amounts of memory bus bandwidth, Luxshare-TECH designers are working to revise, extend and update the interconnection solution.


FEATURES & BENEFITS
  • Support cable to board application: 1.57mm PCB card thickness
  • Multiple channels are optional: 1C(56pos),2C(84pos),4C(140pos)more customized requirement available
  • Small size design with great robustness : Pitch 0.6mm connector and max 25N wrenching test
  • Excellent SI performance: Signal rates up to PCIe5 32GT/s, SAS 4.0 24Gbps and 56 GT/s PAM4 and 112 GT/s PAM4(in future)
  • Compatible with many different industry standards and protocols including SAS, PCIe and 25G Ethernet
  • Straight, right angle cable plug are optional
  • 85 ohm and 100 ohm impedances are optional
  • 29-34AWG cables are available for both discrete and ribbon cable
  • RoHS compliant. Halogen free is available on request
了解更多

Product Numbers Product Description
LA0GZXXX-SD-R Internal GenZ 1C Cable Assembly 1.0 m 30 AWG
LA0GZXXX-SD-R Internal GenZ 2C Cable Assembly 1.0 m 30 AWG
LA1GZXXX-SD-R Internal GenZ 4C Cable Assembly 1.0 m 30 AWG
LA0GZXXX-SD-R Internal GenZ 1C Cable Assembly 0.7 m 32 AWG
LA0GZXXX-SD-R Internal GenZ 2C Cable Assembly 0.7 m 32 AWG
LA1GZXXX-SD-R Internal GenZ 4C Cable Assembly 0.7 m 32 AWG
LA0GZXXX-SD-R Internal GenZ 1C Cable Assembly 0.5 m 34 AWG
LA0GZXXX-SD-R Internal GenZ 2C Cable Assembly 0.5 m 34 AWG
LA1GZXXX-SD-R Internal GenZ 4C Cable Assembly 0.5 m 34 AWG
