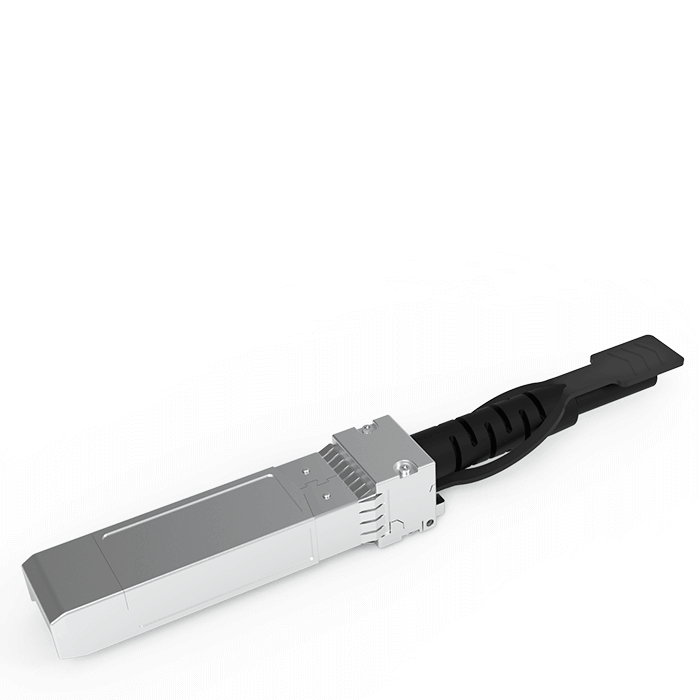

S-SFP Copper Cable
Luxshare-TECH Super SFP copper cable is widely adopted in the interconnection between switch unit and computing nodes(25Gbps for Ethernet), the interconnection between server and storage (32Gbps for Fiber Channel) in datacenter and Enterprise IT infranstructure, and adopted in Supercomputing system based on IBTA. It is a high reliability, high aggregate data bandwidth and cost-saving solution.
FEATURES & BENEFITS
- Compliant with SFF-8431
- Support IEEE802.3by, rate up to 25G
- 1x(one channel) base configuration
- High speed storage applications
- I2C for EEPROM communication
- 100 Ohms differential impedance
- Pull to Release latch design
- 32AWG and 26AWG cable available
- Operation temperature: 0℃~+70℃
- Storage Ambient Temperature: -40℃~+85℃
- Relative Humidity< 80%
- 360 degree EMI crimping shielding
- All materials comply with RoHS2.0
了解更多
| Product Numbers | Product Description |
| LA0SFXXX-SD-R | SFP 10G 30AWG 1.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 10G 30AWG 2.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 10G 30AWG 3.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 10G 30AWG 5.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 25G 30AWG 1.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 25G 30AWG 2.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 25G 30AWG 3.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 25G 26AWG 5.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 25G 26AWG 7.0M Active Cable Assembly |
| LA0SFXXX-SD-R | SFP 50G 30AWG 1.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 50G 30AWG 2.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 50G 26AWG 3.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 50G 24AWG 5.0M Passive Cable Assembly m |
| LA0SFXXX-SD-R | SFP 100G 30AWG 1.0M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 100G 28AWG 1.4M Passive Cable Assembly |
| LA0SFXXX-SD-R | SFP 100G 26AWG 2.0M Passive Cable Assembly |
