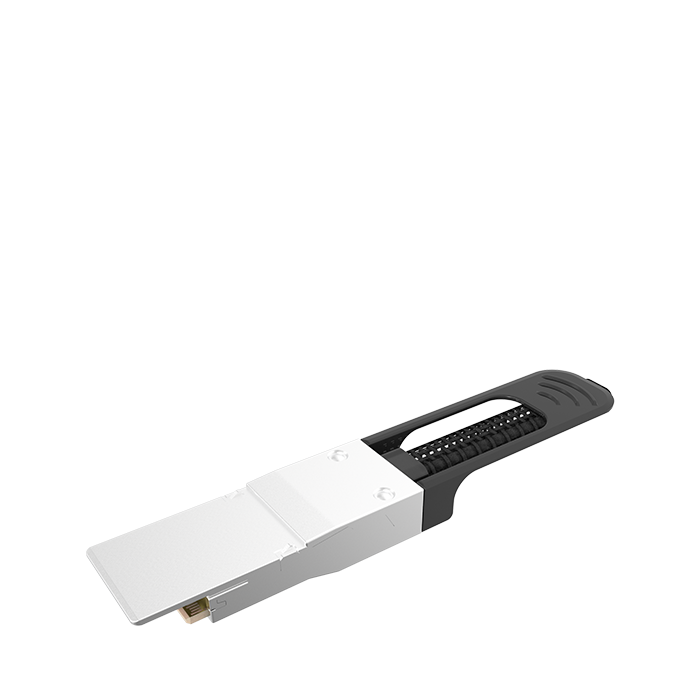

External ASM Cable

Luxshare-TECH 200Gbps QSFP56 optical transceiver built-in mux and de-mux component, it is designed with 4 CWDM DFB Laser and 4 photodiodes. 200G QSFP56 FR4 is designed for 200G Ethernet links communication. The link distance up to 2km with single-mode fiber. The transceiver uses Dual LC optical interface and the electrical interface use a 38 pins type connector. All the design is based on the industry standard specifications, such as SFF-8665, CMIS4.0 and IEEE802.3bs, etc.


FEATURES & BENEFITS
  • Smaller size in than exiting solution
  • 0.6mm pitch with 62 positions
  • Designed for both single and double-sided modules
  • Support belly to belly application
  • Support PCI Express 5.0, upcomingpcie6.0
了解更多

Product Numbers Product Description
LA0AM001-SD-R  EXTERNAL ASM 62PIN 29AWG 0.5M FOR PCIE5.0
LA0AM002-SD-R  EXTERNAL ASM 62PIN 29AWG 0.5M FOR PCIE5.0
LA0AM003-SD-R  EXTERNAL ASM 62PIN 29AWG 0.5M FOR PCIE5.0
LA0AM004-SD-R  EXTERNAL ASM 62PIN 29AWG 0.5M FOR PCIE5.0
