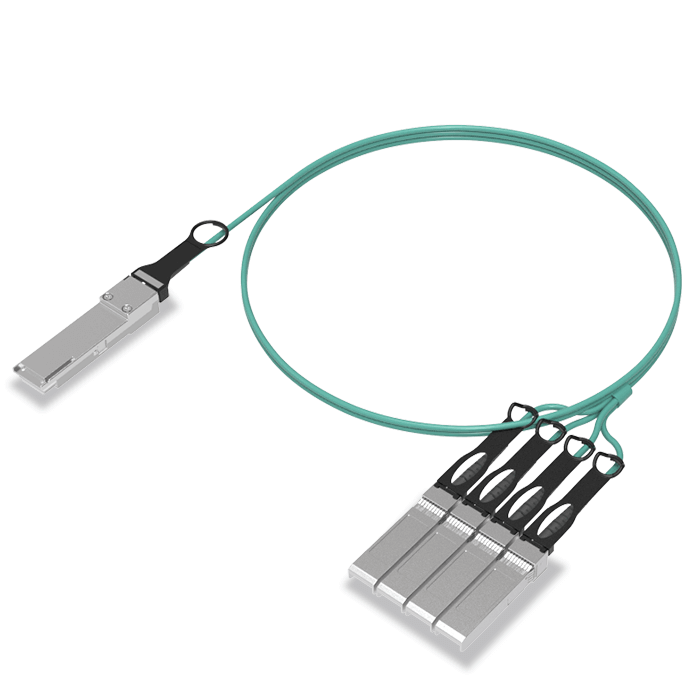

40G QSFP+ Fanout AOC

Luxshare-TECH 40Gbps QSFP+ to 4x 10GE SFP+ active optical cables can provide high-performance by combining four channels operating at speeds up to 10Gbps per lane for QSFP+ and SFP+ equipment interconnect.

FEATURES & BENEFITS

Four-channel full-duplex active optical cable from QSFP+ to four SFP+
Supports 10.3125Gbps per channel
Low Power Dissipation, MAX 1.3W on QSFP+ end, MAX. 0.8W on SFP+ end.
Operating Case Temperature: 0℃ to +70℃

了解更多

Standard Product
Applications

PN	Package	Description	Reach	Protocol Support	Data Rate	Temp	Power Consumption(w)	Optical Connector	Transceiver	Receiver	Wavelength
PA0QS0101-SD-R	QSFP+Fanout	AOC	1m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
PA0QS0201-SD-R	QSFP+Fanout	AOC	2m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
PA0QS0301-SD-R	QSFP+Fanout	AOC	3m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
PA0QS0401-SD-R	QSFP+Fanout	AOC	5m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
PA0QS0501-SD-R	QSFP+Fanout	AOC	7m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
PA0QS0601-SD-R	QSFP+Fanout	AOC	10m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
PA0QS0701-SD-R	QSFP+Fanout	AOC	15m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
PA0QS0801-SD-R	QSFP+Fanout	AOC	20m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
PA0QS0901-SD-R	QSFP+Fanout	AOC	70m	Ethernet	40Gbps	0-70℃	1.5(QSFP+)/0.8(SFP+)	NA	VCSEL	PIN	850nm
