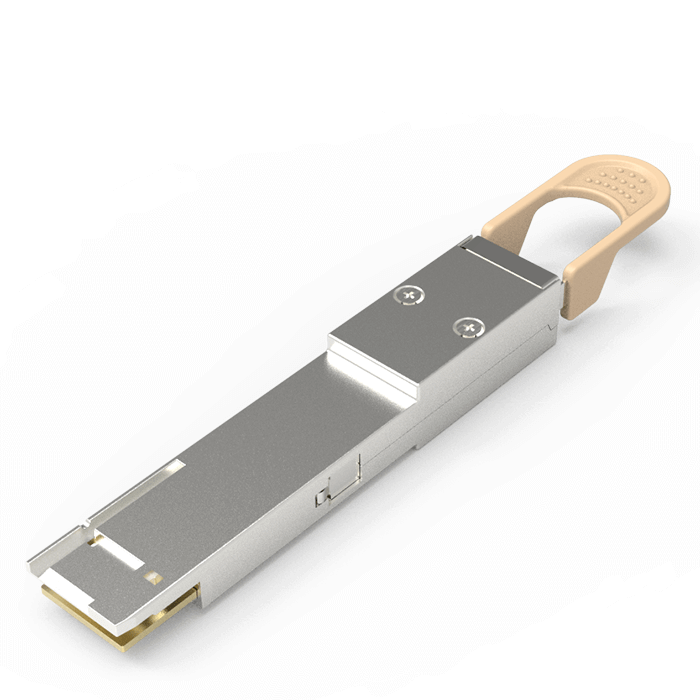

200G S-QSFP-DD SR8
Luxshare-TECH 200Gbps S-QSFP-DD optical transceiver is designed for 200Gbps Ethernet links with short-reach communication. The link distance up to 70m and 100m over OM3 and OM4 respectively. It integrates eight data lanes in each direction with each lane operating at 25.78125Gbps and 10.3125 Gbps.
FEATURES & BENEFITS
- Hot Pluggable QSFP-DD form factor
- Supports auto-rate detection for both 25.78125Gbps and 10.3125Gbps operation
- Low Power Dissipation, MAX 3.5W Each End
- Up to 70m transmission with OM3 multimode fiber and 100m transmission with OM4 multimode fiber.
- 850nm VCSEL/PIN photo detector
- Operating Case Temperature: 0℃ to +70℃/-5℃ to +85℃
Learn more
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA02QMA01-SD-R | S-QSFP-DD | SR8 | 70m(OM3)/100m(OM4) | Ethernet | 200Gbps | 0-70℃ | 3.5W | MPO | VCSEL | PIN | 850nm |
| PA02QMA0E-SD-R | S-QSFP-DD | SR4 | 70m(OM3)/100m(OM4) | Ethernet | 200Gbps | -5-85℃ | 3.5W | MPO | VCSEL | PIN | 850nm |
