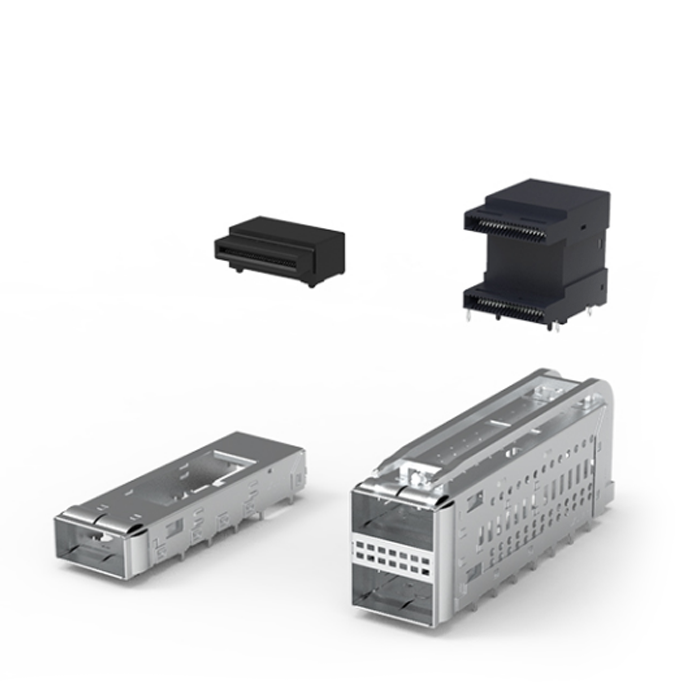

S-QSFP(100G)/U-QSFP(200G)
Luxshare-TECH 200G Ultra QSFP and 100G Ultra QSFP high speed I/O could be mated with standard QSFP56 and QSFP28 copper cables oroptical transceiver that combine four channels operating at speeds up to 56Gbps per channel or 28Gbps per channel.
-and-Ultra-QSFP(200G).png)
FEATURES & BENEFITS
- Enhanced EMI cage design provides excellent EMI-protection and thermal performance
- Behind bezel and Thru bezel
- Belly-to-belly mounting capability for panel density
- Light pipe and heat sink options available
- Stacked type of connector supports 56Gb/s PAM4, SMT and Press-Fit options
Learn more
| Product Numbers | Product Description |
| PQP038-7510-001-1H | S-QSFP 1X1 Conn，38P,Au 30u",SMT,With solder pad |
| PQP038-7500-001-0H | S-QSFP 1X1 Conn，38P,Au 30u",SMT,Without solder pad |
| PQPB76-6300-000-1H | U-QSFP 2X1 conn SMT,Contact Area:Au 30u",Solder Area:Matte Tin plated |
| PQPC10-E300-010-0R | S-QSFP 1X1 Cage No EON in the rear-end, windown opened on the top |
| PQPC10-E360-010-0R | S-QSFP 1X1 Cage No EON in the rear-end, w/heatsink，w/PCI |
| PQPC15-E300-010-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, windown opened on the top |
| PQPC15-E300-110-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, sealing on the top |
| PQPC15-E300-000-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, round holes on the top |
| PQPC15-E360-010-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, 13.7mm heatsink，no light pipe |
| PQPC10-E380-010-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, 23mm heatsink，no light pipe |
| PQPC10-E360-210-1R | S-QSFP WITH 5 DEG ANGLE,TAPE&REEL |
| PQPC24-E300-010-0R | S-QSFP 1X2 Cage 2 EON in the rear-end, windown opened on the top |
| PQPC24-E360-010-0R | S-QSFP 1X2 Cage 2 EON in the rear-end, w/heatsink，w/o lightpipe |
| PQPC20-E305-000-0R | S-QSFP 1X2 Cage no EON in the rear-end, round holes on the top |
| PQPC44-E300-010-0R | S-QSFP 1X4 Cage no EON in the rear-end, windown opened on the top |
| PQPC44-E360-010-0R | S-QSFP 1X4 Cage no EON in the rear-end, w/heatsink，w/o lightpipe |
| PQPC44-E3B0-010-0R | S-QSFP 1X4 Cage no EON in the rear-end, w/heatsink，w/o lightpipe |
| PQPC44-E303-010-0R | S-QSFP 1X4 Cage 1 EON in the rear-end, 2 lightpipe |
| PQPC44-E300-110-0R | S-QSFP 1X4 Cage 1 EON in the rear-end, windown opened on the top |
| PQPC40-E3B5-010-0R | S-QSFP 1X4 Cage no EON in the rear-end, w/heatsink, 1lightpipe |
| PQPC64-E300-010-0R | S-QSFP 1X6 Cage 1 EON in the rear-end, windown opened on the top |
| PQPC64-E360-010-0R | S-QSFP 1X6 Cage 1 EON in the rear-end, w/heatsink, no lightpipe |
| PQPCA0-E3MC-090-0R | U-QSFP 2X1 CAGE lightpipe COATING |
| PQPCA0-E303-100-0R | U-QSFP 2X1 CAGE, w/lightpipe, w/o heatsink |
| PQPCA0-E303-090-0R | U-QSFP 2X1 CAGE, w/lightpipe and heatsink, windown opened on the top |
