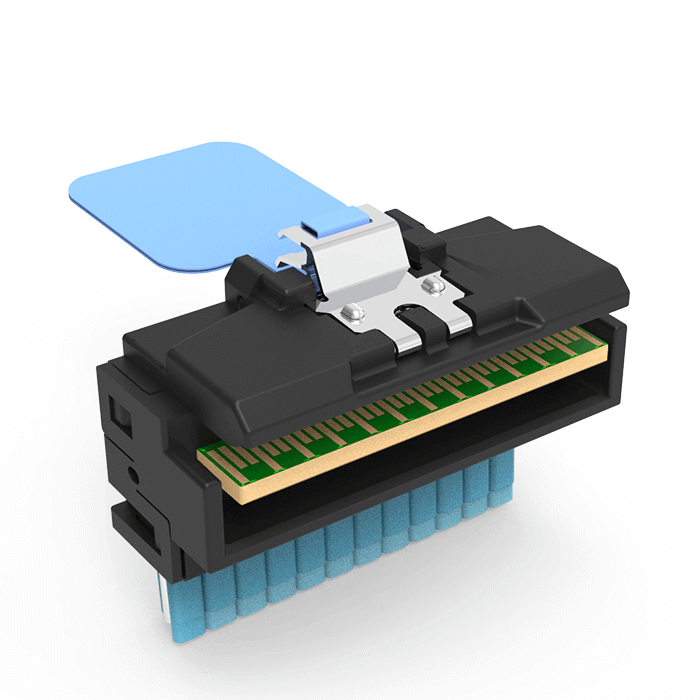

Low Profile SlimSAS Cable
Luxshare-TECH develop the Low profile Slimsas, the new interconnect solution for higher speed signal transmission, such as SAS4.0(24Gbps) and PCIeGen4/5(16gg, which can be used in application of 24Gbps SAS signal or PCIeGen4(16GT/s).
FEATURES & BENEFITS
- Support cable to board application: 1.0mm PCB card thickness
- Multiple channels are optional: 4X/6X(38pos),8X/12X(74pos),16X/20X（124pos)more customized requirement available
- Small size design with great robustness : pitch 0.6mm connector and max 25N wrenching test
- Excellent SI performance: signal rates up to PCIe5 32GT/s, SAS 4.0 24Gbps and 25Gbps Ethernet
- Compatible with many different industry standards and protocols including SAS, PCIe and 25G Ethernet
- Straight, right angle, side exit and customization cable plug are optional
- 85 ohm and 100 ohm impedances are optional
- 30-34AWG cables are available for both discrete and ribbon cable
- RoHS compliant. Halogen free is available on request
Learn more
| Product Numbers | Product Description |
| LA0LPXXX-SD-R | Internal LP SlimSAS 4i Cable Assembly 1.0 m 30 AWG |
| LA0LPXXX-SD-R | Internal LP SlimSAS 8i Cable Assembly 1.0 m 30 AWG |
| LA0LPXXX-SD-R | Internal LP SlimSAS 16i Cable Assembly 1.0 m 30 AWG |
| LA0LPXXX-SD-R | Internal LP SlimSAS 4i Cable Assembly 0.7 m 32 AWG |
| LA0LPXXX-SD-R | Internal LP SlimSAS 8i Cable Assembly 0.7 m 32 AWG |
| LA0LPXXX-SD-R | Internal LP SlimSAS 16i Cable Assembly 0.7 m 32 AWG |
| LA0LPXXX-SD-R | Internal LP SlimSAS 4i Cable Assembly 0.5 m 34 AWG |
| LA0LPXXX-SD-R | Internal LP SlimSAS 8i Cable Assembly 0.5 m 34 AWG |
| LA0LPXXX-SD-R | Internal LP SlimSAS 16i Cable Assembly 0.5 m 34 AWG |
