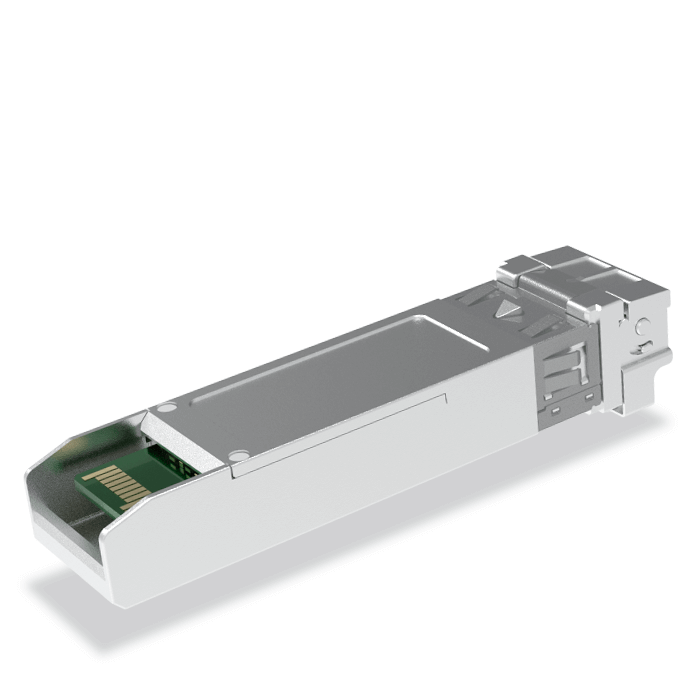

25G S-SFP28 LR-Lite

Luxshare-TECH 25Gbps S-SFP optical transceiver is designed for 25G Ethernet links with very high port density based on the new electrical and mechanical specification for the SFF-8431 and SFF-8432 respectively. The transceiver utilizes 1310nm DFB and PIN Detect technology to provide the 300m link on SMF.


FEATURES & BENEFITS
  • Hot Pluggable SFP form factor
  • Supports 25.78125Gbps
  • Up to 300m transmission with single-Mode fiber
  • 1310nm DFB Laser/PIN Photo Detector
  • Low Power Dissipation, MAX 1.2W
  • Operating Case Temperature: -40℃ to +85℃
Learn more

PN Package Description Reach Protocol Support Data Rate Temp Power Consumption Optical Connector Transceiver Receiver Wavelength
PA02SSA1H-NC-R S-SFP LR-Lite 300m(SMF) Ethernet 25Gbps -40℃-85℃ 1.2W DFB VCSEL PIN 1310nm
