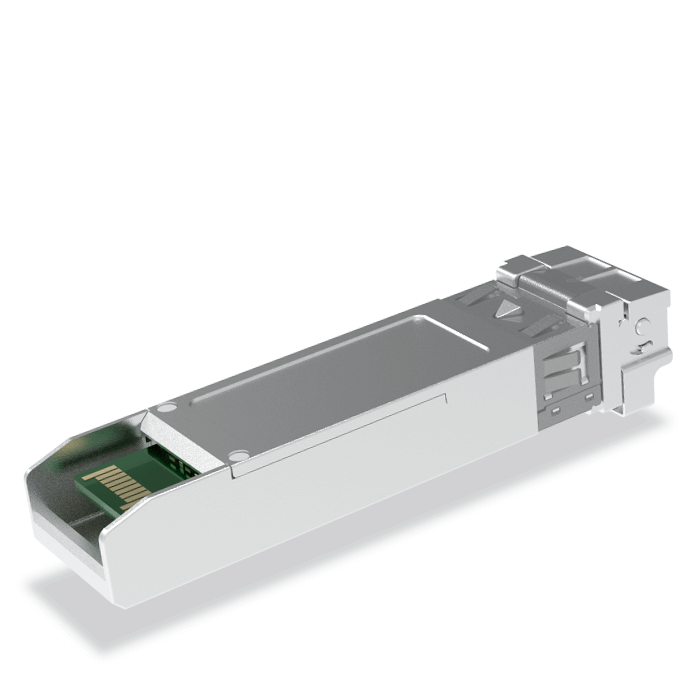

25G S-SFP28 BIDI
Luxshare-TECH 25Gbps S-SFP BIDI optical transceiver is designed for 25G Ethernet links with very high port density based on the new electrical and mechanical specification for the SFF-8431 and SFF-8432 respectively. The transceiver utilizes 1330/1270nm DFB and PIN Detect technology to provide the 10km link on single-strand SMF.
FEATURES & BENEFITS
- Hot Pluggable SFP form factor
- Supports 25.78125Gbps
- Up to 10km transmission with single-Mode fiber
- DFB Laser/PIN Photo Detector
- Low Power Dissipation, MAX 1.5W
- Single LC optical connector
- Operating Case Temperature:-40℃ to +85℃
Learn more
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA02SSD04-NC-R | S-SFP | BIDI | 10km | Ethernet | 25Gbps | 0-70℃ | 1.5W | Single-LC | DFB | PIN | T1270/R1330nm |
| PA02SSD14-NC-R | S-SFP | BIDI | 10km | Ethernet | 25Gbps | 0-70℃ | 1.5W | Single-LC | DFB | PIN | T1330/R1270nm |
| PA02SSD1H-NC-R | S-SFP | BIDI | 10km | Ethernet | 25Gbps | -40-85℃ | 1.5W | Single-LC | DFB | PIN | T1270/R1330nm |
| PA02SSD2H-NC-R | S-SFP | BIDI | 10km | Ethernet | 25Gbps | -40-85℃ | 1.5W | Single-LC | DFB | PIN | T1330/R1270nm |
