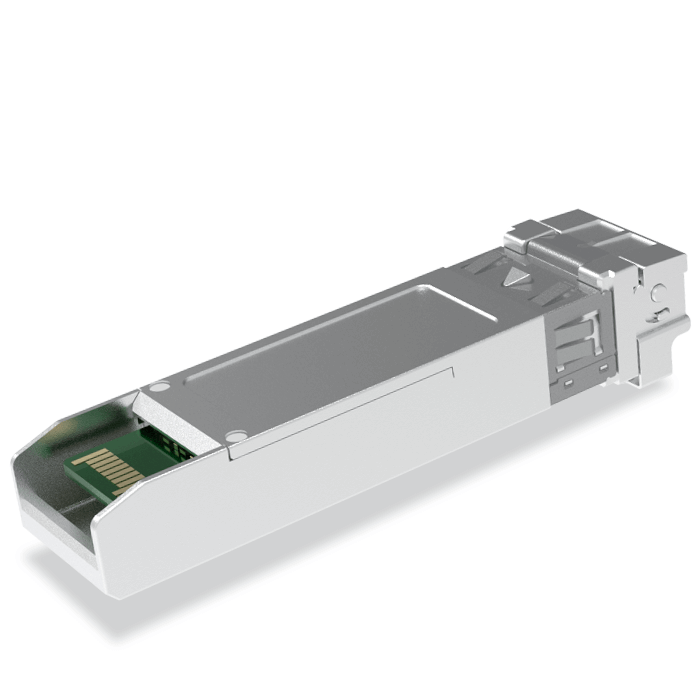

10G SFP+ BIDI
Luxshare-TECH 10Gbps SFP+ transceiver is designed for 10G Ethernet links with very high port density based on the new electrical and mechanical specification for the SFF-8431 and SFF-8432 respectively. The transceiver utilizes 1330nm/1270nm DFB and PIN Detect technology to provide the 10km link on single-strand SMF.
FEATURES & BENEFITS
- Hot Pluggable SFP+ form factor with single-LC connector
- Up to 11.1Gbps Data rate
- 1270nm DFB laser and PIN receiver for uplink
- 1330nm DFB laser and PIN receiver fordownlink
- Low Power Dissipation, MAX 1.5W
- Operating Case Temperature: 0℃ to +70℃/-40℃ to +85℃
Learn more
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA01SSD22-NC-T | SFP+ | BIDI | 10km | Ethernet | 10Gbps | 0-70℃ | 1.5W | Signle-LC | DFB | PIN | T1270/R1330nm |
| PA01SSD32-NC-T | SFP+ | BIDI | 10km | Ethernet | 10Gbps | 0-70℃ | 1.5W | Signle-LC | DFB | PIN | T1330/R1270nm |
| PA01SSD2H-NC-T | SFP+ | BIDI | 10km | Ethernet | 10Gbps | -40-85℃ | 1.5W | Signle-LC | DFB | PIN | T1270/R1330nm |
| PA01SSD3H-NC-T | SFP+ | BIDI | 10km | Ethernet | 10Gbps | -40-85℃ | 1.5W | Signle-LC | DFB | PIN | T1330/R1270nm |
