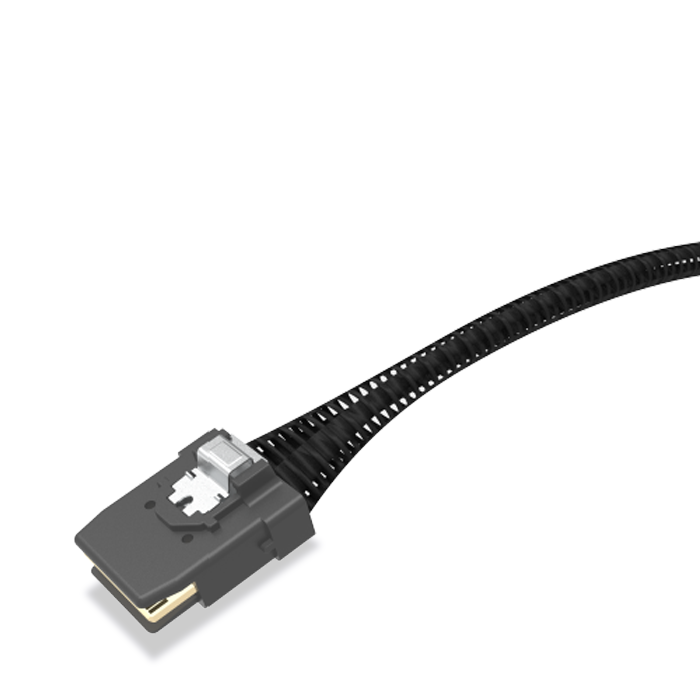

MiniSAS Cable
Luxshare-TECH MiniSAS is a cost effective solution and can supply all configuration of both 12 Gbps and 6 Gbps MiniSAS products up to 1 meter range. The solution mainstream solutions for SAS3.0.
FEATURES & BENEFITS
- Support cable to board application: 1.0mm PCB card thickness
- Multiple channels are optional: 4X/6X(36pos),8X/12X(68pos),more customized requirement available
- Small size design with great robustness : Pitch 0.8mm connector and max 25N wrenching test
- Excellent SI performance: Signal rates up to SAS 3.0 12Gbps
- Compatible with many different industry standards and SAS protocols
- Straight, right angle, side exit and customization cable plug are optional
- 85 ohm and 100 ohm impedances are optional
- 28-34AWG cables are available for both discrete and ribbon cable
- RoHS compliant. Halogen free is available on request
Learn more
| Product Numbers | Product Description |
| LA0MSXXX-SD-R | Internal MiniSAS 4i Cable Assembly 1.0 m 30 AWG |
| LA0MSXXX-SD-R | Internal MiniSAS 8i Cable Assembly 1.0 m 30 AWG |
| LA0MSXXX-SD-R | Internal MiniSAS 4i Cable Assembly 0.7 m 32 AWG |
| LA0MSXXX-SD-R | Internal MiniSAS 8i Cable Assembly 0.7 m 32 AWG |
| LA0MSXXX-SD-R | Internal MiniSAS 4i Cable Assembly 0.5 m 34 AWG |
| LA0MSXXX-SD-R | Internal MiniSAS 8i Cable Assembly 0.5 m 34 AWG |
