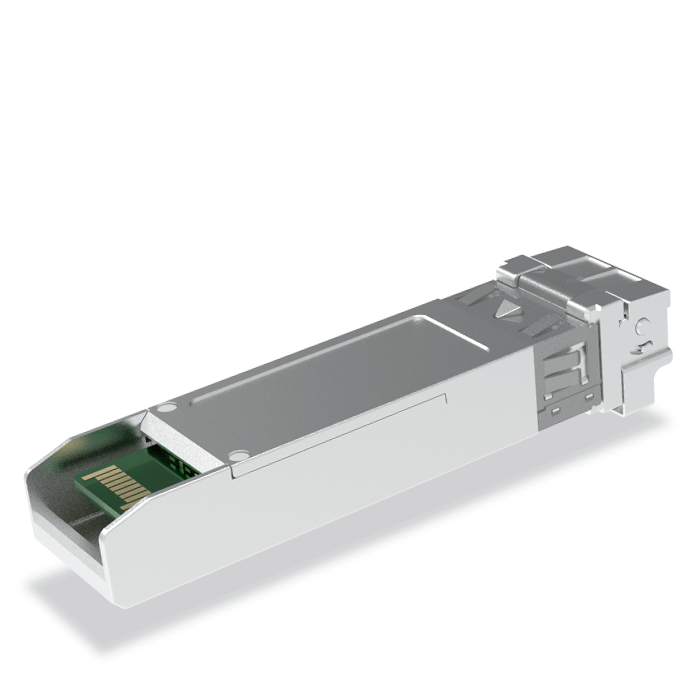

25G S-SFP28 CWDM
Luxshare-TECH 25Gbps S-SFP optical transceiver is designed for 25G Ethernet links with very high port density based on the new electrical and mechanical specification for the SFF-8431 and SFF-8432 respectively. The CWDM transceiver support the link distance up to 10km over SMF for the wavelength of 1271nm, 1291nm, 1311nm and 1331nm.
FEATURES & BENEFITS
- Hot Pluggable SFP form factor
- Supports 25.78125Gbps
- Up to 10km transmission with single-Mode fiber
- CWDM DFB Laser/PIN Photo Detector
- Low Power Dissipation, MAX 1.2W
- Operating Case Temperature: -40℃ to +85℃
Learn more
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA02SSD3H-NC-R | S-SFP | CWDM | 10km | Ethernet | 25Gbps | -40-85℃ | 1.2W | LC | DFB | PIN | 1271nm |
| PA02SSD4H-NC-R | S-SFP | CWDM | 10km | Ethernet | 25Gbps | -40-85℃ | 1.2W | LC | DFB | PIN | 1291nm |
| PA02SSD5H-NC-R | S-SFP | CWDM | 10km | Ethernet | 25Gbps | -40-85℃ | 1.2W | LC | DFB | PIN | 1311nm |
| PA02SSD6H-NC-R | S-SFP | CWDM | 10km | Ethernet | 25Gbps | -40-85℃ | 1.2W | LC | DFB | PIN | 1331nm |
