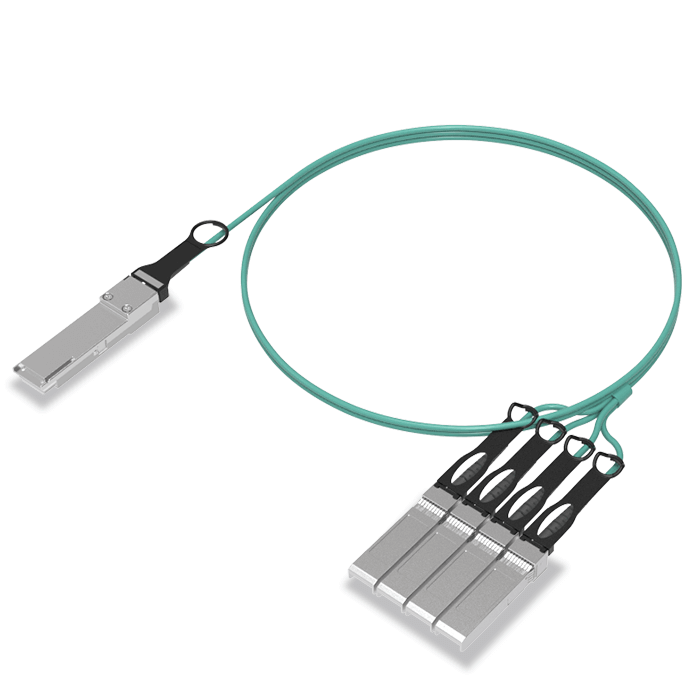

100G S-QSFP28 Fanout AOC
Luxshare-TECH 100GE S-QSFP 100G to 4x 25Gbps S-SFP active optical cables can provide high-performance by combining four channels operating at speeds up to 25Gbps per lane for S-QSFP and S-SFP equipment interconnect.
FEATURES & BENEFITS
- Four-channel full-duplex active optical cable from S-QSFP to four S-SFP
- Supports 25.78125Gbps per channel
- Low Power Dissipation, MAX 1.8W on
- S-QSFP end, MAX. 0.8W on S-SFP end
- Operating Case Temperature: 0℃ to +70℃/-5℃ to +85℃
Learn more
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA0QS1101-SD-R | S-QSFP/S-SFP | AOC | 1m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1301-SD-R | S-QSFP/S-SFP | AOC | 3m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1401-SD-R | S-QSFP/S-SFP | AOC | 5m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1501-SD-R | S-QSFP/S-SFP | AOC | 7m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1601-SD-R | S-QSFP/S-SFP | AOC | 10m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1701-SD-R | S-QSFP/S-SFP | AOC | 15m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1801-SD-R | S-QSFP/S-SFP | AOC | 20m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1802-SD-R | S-QSFP/S-SFP | AOC | 25m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1901-SD-R | S-QSFP/S-SFP | AOC | 30m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1902-SD-R | S-QSFP/S-SFP | AOC | 70m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS1903-SD-R | S-QSFP/S-SFP | AOC | 100m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS110E-SD-R | S-QSFP/S-SFP | AOC | 1m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS120E-SD-R | S-QSFP/S-SFP | AOC | 2m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS130E-SD-R | S-QSFP/S-SFP | AOC | 3m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS140E-SD-R | S-QSFP/S-SFP | AOC | 5m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS150E-SD-R | S-QSFP/S-SFP | AOC | 7m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS160E-SD-R | S-QSFP/S-SFP | AOC | 10m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS170E-SD-R | S-QSFP/S-SFP | AOC | 15m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS180E-SD-R | S-QSFP/S-SFP | AOC | 20m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0QS190E-SD-R | S-QSFP/S-SFP | AOC | 70m | Ethernet | 100Gbps | -5-85℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
