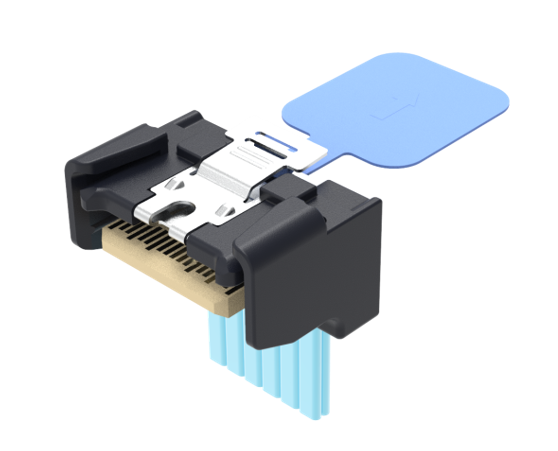

M2M Cable

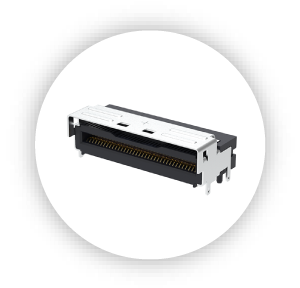

NEXT-GENERATION HIGH SPEED INTERCONNECT SOLUTION- UP TO 56G PAM4 PCIe® Gen 5 Luxshare introduces the next-generation – Mini Cool Edge IO. The 0.60mm pitch connector come with a slim form factor design, capable of transmitting high-speed signal up to 56G PAM4/PCIe® Gen 5, and allowing much greater signal path lengths while maintaining SI performance when compared to conventional pcb routing methods.


FEATURES & BENEFITS
  • 0.60mm pitch, 38, 50, 74, 124, 148 pins for PCIe multi-lanes design
  • Date rate: 32G NRZ & 56GPAM4 data rate with potential up to 64G PAM4 & 112G PAM4
  • Robust and stable pull-to-release latching, Proven anti skew-mate
  • Conductors Size: 30Awg~34Awg
  • Simple structural keying/polarizing of very strong mechanical feature
  • Robust and stable pull-to-release latching
  • Board end connector accepts 1.57mm Add-In-Card as well for increased application flexibility
  • Provide connector mated with customer paddle card and board connector mated with cable options
  • Provide Vertical/Right angle board connector and VT/RA cable plug options for all application
  • Slim form factor for compact data center system designs
  • Extends transmission range far more over the conventional PCB routes
  • Provides flexibility in system design to meet highly modular, scalable and easy-to-repair requirements
  • Saves system material cost, engineering and certification expenses with high succession of system design
了解更多

Product Numbers Product Description
LA0M2XXX-SD-R Internal Cable Assembly MCIO to MCIO 1.0 m
