S-QSFP(100G)/U-QSFP(200G)

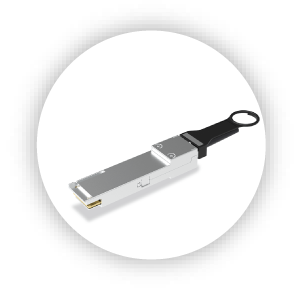

Luxshare-TECH 200G Ultra QSFP and 100G Ultra QSFP high speed I/O could be mated with standard QSFP56 and QSFP28 copper cables oroptical transceiver that combine four channels operating at speeds up to 56Gbps per channel or 28Gbps per channel.
-and-Ultra-QSFP(200G).png)
FEATURES & BENEFITS
- Enhanced EMI cage design provides excellent EMI-protection and thermal performance
- Behind bezel and Thru bezel
- Belly-to-belly mounting capability for panel density
- Light pipe and heat sink options available
- Stacked type of connector supports 56Gb/s PAM4, SMT and Press-Fit options
了解更多
| Product Numbers | Product Description |
| PQDC49-E006-000-0H | QSFP56 1X4 cage, without heatsink,w 4ports single LP |
| PQP038-7500-001-0H | Ultra QSFP 56G conn, 38pin, SMT |
| PQP038-7520-001-0H | Ultra QSFP 112G conn, 38pin, SMT |
| PQPB76-6300-000-1H | Ultra QSFP 56G 2X1 conn |
| PQP038-7510-001-1H | S-QSFP 1X1 Conn，38P,Au 30u",SMT,With solder pad |
| PQP038-7500-001-0H | S-QSFP 1X1 Conn，38P,Au 30u",SMT,Without solder pad |
| PQPB76-6300-000-1H | U-QSFP 2X1 conn SMT,Contact Area:Au 30u",Solder Area:Matte Tin plated |
| PQPC10-E300-010-0R | S-QSFP 1X1 Cage No EON in the rear-end, windown opened on the top |
| PQPC10-E360-010-0R | S-QSFP 1X1 Cage No EON in the rear-end, w/heatsink，w/PCI |
| PQPC10-E380-010-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, 23mm heatsink，no light pipe |
| PQPC10-E360-210-1R | S-QSFP WITH 5 DEG ANGLE,TAPE&REEL |
| PQPC11-E200-02S-0R | Q28 1x1 CAGE WITH 13mm HS |
| PQPC11-E200-10G-0R | QSFP 1X1 CAGE w HS(H=12.57) w/o L/P w/o LOGO |
| PQPC11-E300-02S-0R | Q28 1x1 CAGE WITH 19mm HS |
| PQPC12-E000-10S-0R | QSFP28 1X2 Cage w holes on top, w/o LP |
| PQPC12-E200-02S-0R | Q56 1X2CAGE w Logo&HS,HS(15.1MM) |
| PQPC14-E000-000-0R | Q56 1X4 CAGE, w Logo |
| PQPC14-E120-011-0R | QSFP56 1X4 Cage w Heatsink & LP(HS=5.3) |
| PQPC15-E212-001-0H | Q56 1x5 CAGE WITH ONE LP AND HS H=15mm, Belly to Belly |
| PQPC15-E300-010-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, windown opened on the top |
| PQPC15-E300-110-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, sealing on the top |
| PQPC15-E300-000-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, round holes on the top |
| PQPC15-E360-010-0R | S-QSFP 1X1 Cage 2 EON in the rear-end, 13.7mm heatsink，no light pipe |
| PQPC16-E212-000-0H | Q561x6 CAGE WITH ONE LP AND HS H=15mm, Belly to Belly |
| PQPC24-E300-010-0R | S-QSFP 1X2 Cage 2 EON in the rear-end, windown opened on the top |
| PQPC24-E360-010-0R | S-QSFP 1X2 Cage 2 EON in the rear-end, w/heatsink，w/o lightpipe |
| PQPC20-E305-000-0R | S-QSFP 1X2 Cage no EON in the rear-end, round holes on the top |
| PQPC44-E300-010-0R | S-QSFP 1X4 Cage no EON in the rear-end, windown opened on the top |
| PQPC44-E360-010-0R | S-QSFP 1X4 Cage no EON in the rear-end, w/heatsink，w/o lightpipe |
| PQPC44-E3B0-010-0R | S-QSFP 1X4 Cage no EON in the rear-end, w/heatsink，w/o lightpipe |
| PQPC44-E303-010-0R | S-QSFP 1X4 Cage 1 EON in the rear-end, 2 lightpipe |
| PQPC44-E300-110-0R | S-QSFP 1X4 Cage 1 EON in the rear-end, windown opened on the top |
| PQPC44-E3B3-010-0R | QSFP28 1X4 Cage w Heatsink & LP |
| PQPC40-E3B5-010-0R | S-QSFP 1X4 Cage no EON in the rear-end, w/heatsink, 1lightpipe |
| PQPC64-E300-010-0R | S-QSFP 1X6 Cage 1 EON in the rear-end, windown opened on the top |
| PQPC64-E305-000-0R | QSFP56 1X6 cage, without heatsink, w 6ports single LP |
| PQPC64-E360-010-0R | S-QSFP 1X6 Cage 1 EON in the rear-end, w/heatsink, no lightpipe |
| PQPCA0-E3MC-090-0R | U-QSFP 2X1 CAGE lightpipe COATING |
| PQPCA0-E300-S90-0R | Q56 2X1 CAGE |
| PQPCA0-E303-100-0R | U-QSFP 2X1 CAGE, w/lightpipe, w/o heatsink |
| PQPCA0-E303-090-0R | U-QSFP 2X1 CAGE, w/lightpipe and heatsink, windown opened on the top |
| PQSC11-E000-FAS-1H | QSFP+ 1X1CAGE,w Logo, open top |
