S-QSFP-DD/U-QSFP-DD

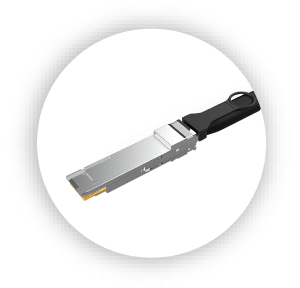

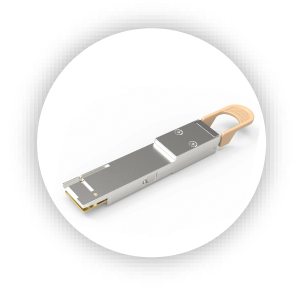

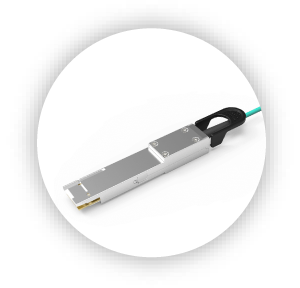

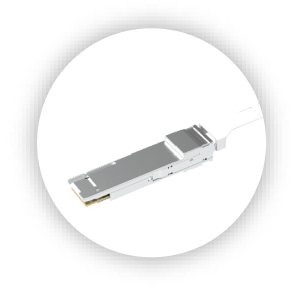

Luxshare-TECH Extreme/Ultra QSFP-DD board I/O connector combines 8channels operating at speeds up to 112Gbps/56Gbps per channel into one affordable high-density interface(QSFP-DD) mating with copper cable assembly oroptical Transceiver. The total port bandwidth is up to 800Gbps/400Gbps.
FEATURES & BENEFITS
- Using 76 position PT (Pluggable Transceiver) SMT connector with 8 channels
- Ultra/Extreme QSFP-DD I/O connector and cage mating with the standard 400Gbps/800Gbps optical transceiver and copper cable
- Employ 8 lanes operated up to 56G PAM4 modulation or 112G PAM4 modulation
- Providing solutions up to 400Gbps or 800Gbps aggregated bandwidth
- Belly to belly application
了解更多
| Product Numbers | Product Description |
| PQDC10-E3MC-110-0R | QSFP-DD 1X1 CAGE_Nickel,No EON in the rear-end ,w/ Logo&HS,w/ painted lightpipe |
| PQD076-7521-001-1H | S-QSFP-DD 1X1 Conn, 76Pin, SMT |
| PQDC10-E3E6-040-0R | QDD 1X1 CAGE_Ni, w 1port dual LP |
| PQDC10-E3E6-140-0R | QDD 1X1 CAGE_Ni, w Logo&HS(17.1), 1port dual LP |
| PQDC10-E3F6-040-0R | SHENZHOU_QDD 1X1 CAGE_Ni, w Logo&HS_17.1,1port dual LP |
| PQDC10-E3H3-010-0R | QDD 1X1 CAGE_Ni, w Logo&1port dual LP & HS(24.1) |
| PQDC10-E3J0-050-0R | QDD 1X1 CAGE_Ni, w Logo&HS(15.1), w/o LP |
| PQDC10-E3M3-110-0R | QDD 1X1 Cage, 1port dual LP |
| PQDC11-E010-12S-0R | QSFP-DD 1X1, Ni, EMI spring, holes on top, 1port dual LP w LOGO |
| PQDC11-E300-009-0R | QDD 1X1 CAGE |
| PQDC11-E300-12G-0R | QDD 1X1 CAGE, HS(H=18.4), w/o L/P & LOGO |
| PQDC11-E300-12S-0R | QDD 1X1 CAGE WITH HS AND WITHOUT LP |
| PQDC11-E310-00S-0R | QDD 1X1 CAGE WITH HS, 1port single LP |
| PQDC11-E910-00S-0R | QDD 1X1 CAGE WITH HS, 1port single LP |
| PQDC12-E020-02S-0R | QDD CAGE 1X2, w Logo, w HS |
| PQDC12-E320-02S-0R | QDD CAGE 1X2 w Logo, w 2ports dual LP, w HS |
| PQDC14-E104-00S-0R | QDD 1X4 CAGE w HS & 4ports dual LP |
| PQDC15-E300-000-0R | QDD 1X1 CAGE close top |
| PQDC15-E300-010-0R | QDD 1X1 CAGE w Logo&LP |
| PQDC15-E300-120-0R | QDD1X1CAGE, w logo&HS19 EMI |
| PQDC15-E300-210-0R | QDD 1X1 CAGE_Ni, w Logo&LP & HS(24.1) |
| PQDC15-E300-212-0R | QDD 1X1 CAGE_Ni, w Logo&LP & HS(15.2) |
| PQDC24-E3BB-010-0R | QDD 1X2 CAGE_Ni, w Logo&HS(13.8), w 2ports single LP |
| PQDC24-E3JB-010-0R | QSFP-DD 1X2 CAGE_Nickel,2 EON in the rear-end,w/ Logo&HS(15.5),w/ lightpipe |
| PQDC24-E3KB-010-0R | QSFP-DD 1X2 CAGE_Nickel,2 EON in the rear-end,w/Logo&HS(18.0),w/ lightpipe |
| PQDC24-E3N0-010-0R | QDD 1X2 20.5mmH HS, w 2ports , w 2ports single LP |
| PQDC24-E3P2-010-0R | QDD 1X2 CAGE_Ni, w Logo&HS(37), w 2ports single LP |
| PQDC4B-E320-010-0R | QDD 1X4 CAGE WITH HS |
| PQDC4B-E322-010-0R | QDD 1X4 CAGE WITH HS&DUAL LP |
