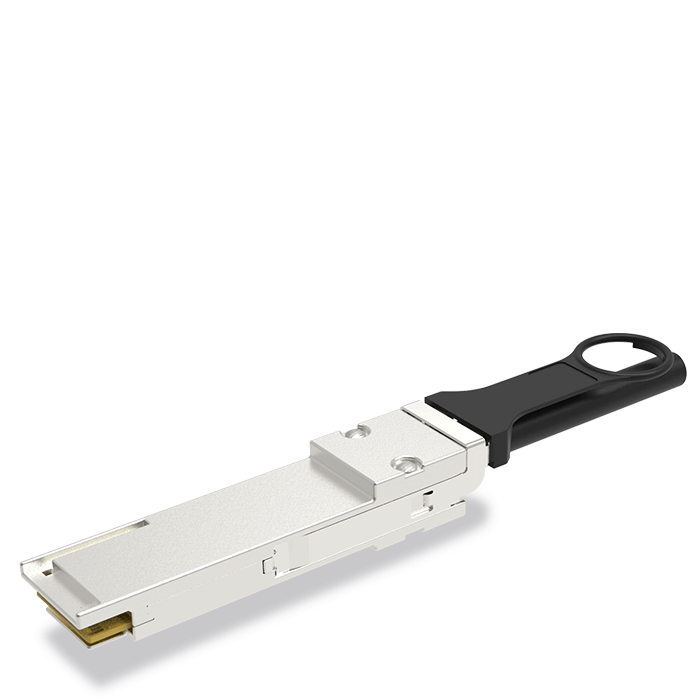

S-QSFP Copper Cable

Luxshare-TECH 100Gbps Super QSFP copper cable is widely adopted in the interconnection among switch units in datacenter based on Ethernet, and adopted in Supercomputing system based on IBTA. It is a high reliability, high aggregate data bandwidth and cost-saving solution.


FEATURES & BENEFITS
  • Compliant with SFF-8436
  • Compliant with IEEE802.3bj
  • Up to 28 Gbps data rate per channel
  • Mating with the standard 38-pin QSFP connector
  • Copper link length up to 3m for 30AWG or 5m for 26AWG
  • Single +3.3V power supply
  • Excellent SI performance
  • I2C based two-wire serial interface of EEPROM signal
  • Operating temperature: 0℃~+70℃
  • Storage Ambient Temperature:-40℃~+85℃
  • Power level I: Less than 30mw(DAC)
  • All materials comply with RoHS2.0
了解更多

Product Numbers Product Description
LA0QFXXX-SD-R QSFP 40G 30AWG 1.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 40G 30AWG 2.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 40G 30AWG 3.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 40G 26AWG 5.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 100G 30AWG 1.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 100G 30AWG 2.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 100G 30AWG 3.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 100G 26AWG 5.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 200G 26AWG 3.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 200G 30AWG 2.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 200G 30AWG 1.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 200G 30AWG 3.0M Active Cable Assembly
LA0QFXXX-SD-R QSFP 200G 28AWG 5.0M Active Cable Assembly
LA0QFXXX-SD-R QSFP 400G 26AWG 2.0M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 400G 28AWG 1.4M Passive Cable Assembly
LA0QFXXX-SD-R QSFP 400G 30AWG 1.0M Passive Cable Assembly
