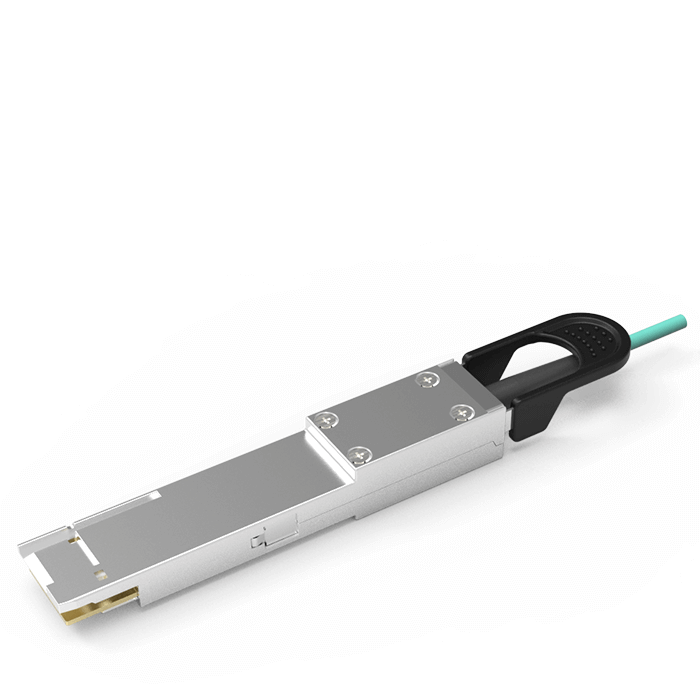

Super QSFP-DD 200G AOC
Luxshare-TECH 200Gbps S-QSFP-DD active optical cable can provide new generation performance of high density optical interconnection by higher date transmission bandwidth.
FEATURES & BENEFITS
- Hot Pluggable QSFP-DD Cable End
- Supports auto-rate detection for both 25.78125Gbps and 10.3125Gbps operation
- Low Power Dissipation, MAX 1.8W on
- Low Power Dissipation, MAX 3.5W Each End
- Operating Case Temperature: 0℃ to +70℃/-5℃ to +85℃
Learn more
| PN | Package | Description | Reach | Protocol Support | Data Rate | Temp | Power Consumption | Optical Connector | Transceiver | Receiver | Wavelength |
| PA0DD2101-SD-R | S-QSFP-DD | AOC | 1m | Ethernet | 200Gbps | 0-70℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD2301-SD-R | S-QSFP-DD | AOC | 3m | Ethernet | 200Gbps | 0-70℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD2301-SD-R | S-QSFP-DD | AOC | 5m | Ethernet | 200Gbps | 0-70℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD2501-SD-R | S-QSFP-DD | AOC | 7m | Ethernet | 200Gbps | 0-70℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD2601-SD-R | S-QSFP-DD | AOC | 10m | Ethernet | 200Gbps | 0-70℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD2701-SD-R | S-QSFP-DD | AOC | 15m | Ethernet | 200Gbps | 0-70℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD2801-SD-R | S-QSFP-DD | AOC | 20m | Ethernet | 200Gbps | 0-70℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD2901-SD-R | S-QSFP-DD | AOC | 30m | Ethernet | 200Gbps | 0-70℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0QS1901-SD-R | S-QSFP/S-SFP | AOC | 30m | Ethernet | 100Gbps | 0-70℃ | 1.8(S-QSFP)/0.8(S-SFP) | NA | VCSEL | PIN | 850nm |
| PA0DD210E-SD-R | S-QSFP-DD | AOC | 1m | Ethernet | 200Gbps | -5-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD230E-SD-R | S-QSFP-DD | AOC | 3m | Ethernet | 200Gbps | -5-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD240E-SD-R | S-QSFP-DD | AOC | 5m | Ethernet | 200Gbps | -5-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD250E-SD-R | S-QSFP-DD | AOC | 7m | Ethernet | 200Gbps | -5-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD260E-SD-R | S-QSFP-DD | AOC | 10m | Ethernet | 200Gbps | -5-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD270E-SD-R | S-QSFP-DD | AOC | 15m | Ethernet | 200Gbps | -5-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD280E-SD-R | S-QSFP-DD | AOC | 20m | Ethernet | 200Gbps | -5-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD210H-SD-R | S-QSFP-DD | AOC | 1m | Ethernet | 200Gbps | -20-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD230H-SD-R | S-QSFP-DD | AOC | 3m | Ethernet | 200Gbps | -20-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD240H-SD-R | S-QSFP-DD | AOC | 5m | Ethernet | 200Gbps | -20-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD250H-SD-R | S-QSFP-DD | AOC | 7m | Ethernet | 200Gbps | -20-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD260H-SD-R | S-QSFP-DD | AOC | 10m | Ethernet | 200Gbps | -20-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD270H-SD-R | S-QSFP-DD | AOC | 15m | Ethernet | 200Gbps | -20-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
| PA0DD280H-SD-R | S-QSFP-DD | AOC | 20m | Ethernet | 200Gbps | -20-85℃ | 3.5W | NA | VCSEL | PIN | 850nm |
