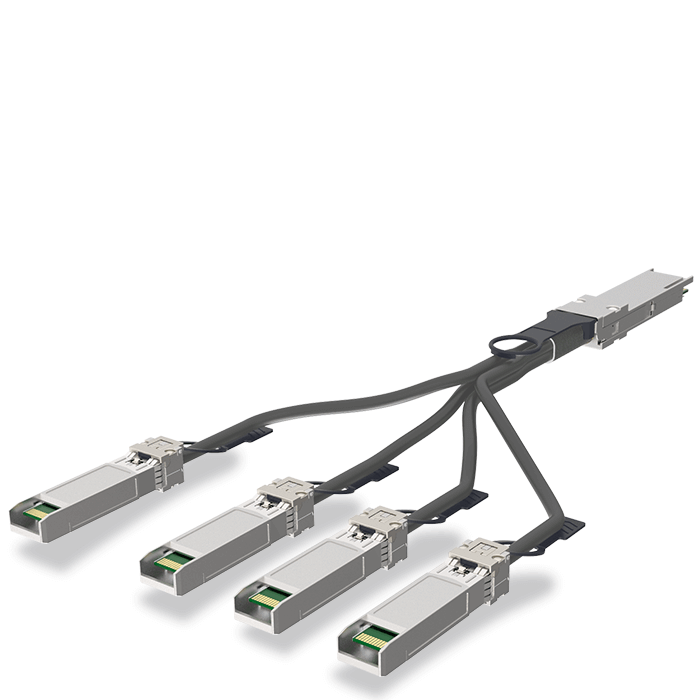

S-QSFP(100G) to 2x/4xS-SFP(25G) Fan-out Copper Cable

Luxshare-TECH S-QSFP to 4xS-SFP copper cable assemblies consist of 8(100Ohm) differential pairs which are individually shielded. In the cable assembly each side transmits a group of 4 differential pairs each running at 25G. One end of the cable is a QSFP (28G) plug with the standard gold finger interface that complies with the mechanical dimensions of the QSFP MSA. The other end consists of 2x/4xSFP(28G) plugs that conform to SFP MSA. Each data lane will contain one DC blocking cap.

FEATURES & BENEFITS

• Compliant with SFF-8431/SFF-8436
• Compliant with IEEE802.3by
• 4 independent full-duplex passive copper cable transceiver
• Up to 28 Gbps data rate per channel
• Mating with the standard 38-pin QSFP(28G) and 20-pin SFP(28G) board connector
• DAC length from 0.5m~7m, ACC length up to 10m by 32AWG~26AWG high speed raw cable
• Very excellent SI perfomance and high reliability
• I2C based two-wire serial interface of EEPROM signal
• Operating temperature: 0℃~+70℃
• Storage Ambient Temperature: -40℃~+85℃
• Power level I: Less than 30mw
• All materials comply with RoHS
