S-SFP/U-SFP

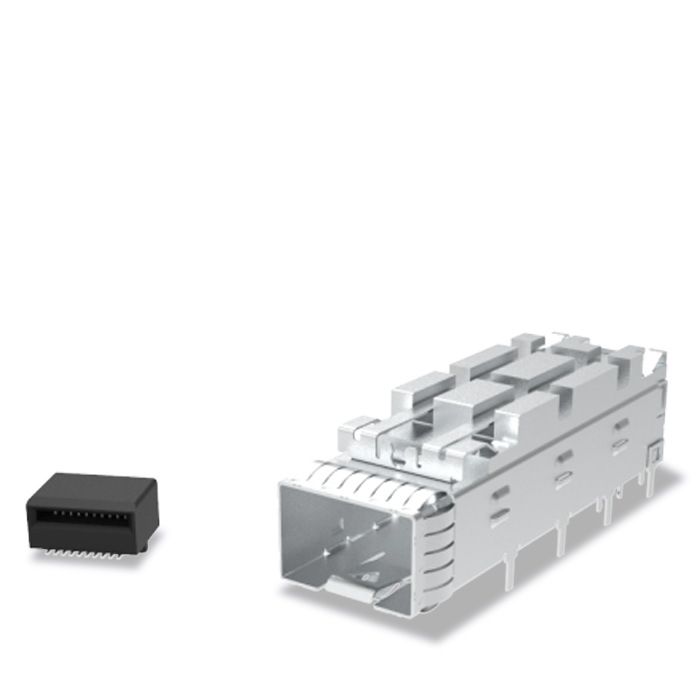

Luxshare-TECH Super SFP and Ultra SFP high speed I/O connector and cage support one channel at 25Gbps and 56Gbps in the high-density package(SFP). Luxshare-TECH Super SFP and Ultra SFP I/O connector is a standard 20-position gold finger interface and SMT footprint of excellent SI performance. And there are diverse types of cage available including 1xN and 2xN that could meet belly to belly easily.
FEATURES & BENEFITS
- EMI spring for cages provide excellent-EMI protection
- Solder and Press Fit cage configurations available
- Support 25 Gbps/Channel for Ethernet application and 28Gbps/channel for FC application
- Backwards compatible with SFP/SFP+ Ethernet and FC application
- Backwards compatible with SFP/SFP+ transceiver module and cable assembly, same mating interface and EMI cage dimensions
- Enhanced EMI cage design provides excellent EMI-protection and thermal performance
Learn more
| Product Numbers | Product Description |
| PZP020-7500-001-1R | S-SFP CONNECTOR,20P,Au 30u",SMT,for EMC |
| PZPC11-E200-000-0R | S-SFP 1X1 CAGE, 3 EON in rear-end, w/o heatsink, w/o light pipe, stainless EMI finger |
| PSPC11-9200-000-0R | SFP+ 1X1 CAGE,3 EON in rear-end, w/o heatsink, w/o lightpipe |
| PZPC11-E300-000-0R | S-SFP 1X1 CAGE,3 EON in rear-end, w/o heatsink, w/o lightpipe |
| PZPC13-E300-000-0R | S-SFP 1X1 CAGE, 3 EON in rear-end, w/o heatsink, w/o lightpipe, 1degree up |
| PZPC16-E302-000-0R | S-SFP 1X1 CAGE,3 EON in rear-end, w/o heatsink, w/ lightpipe |
| PZPC28-E300-000-0R | S-SFP 1X2 CAGE,2 EON in rear-end, w/o heatsink, w/o lightpipe |
| PZPC28-E300-010-0R | S-SFP 1X2 CAGE,2 EON in rear-end, w/o heatsink, w/ lightpipe, window open on the top |
| PZPC28-E310-010-0R | S-SFP 1X2 CAGE,2EON in rear-end, w/ 13.65mm heatsink, w/o lightpipe |
| PZPC28-E340-010-0R | S-SFP 1X2 CAGE,2 EON in rear-end, w/ 13.8mm heatsink, w/o lightpipe |
| PZPC28-E700-000-0R | S-SFP 1X2 CAGE,2 EON in rear-end, w/o heatsink, w/o lightpipe, EM finger on the bottom |
| PZPC28-E700-010-0R | S-SFP 1X2 CAGE,2 EON in rear-end, w/o heatsink, w/o lightpipe, EM finger on the bottom, window open on the top |
| PZPC48-E300-000-0R | S-SFP 1X4 CAGE,2 EON in rear-end, w/o heatsink, w/o lightpipe |
| PZPC48-E300-010-0R | S-SFP 1X4 CAGE,2 EON in rear-end, w/o heatsink, w/o lightpipe, EM finger on the bottom |
| PZPC48-E3B0-010-0R | S-SFP 1X4 CAGE,2 EON in rear-end, w/ 12mm heatsink, w/o lightpipe |
| PZPC48-E700-000-0R | S-SFP 1X4 CAGE,2 EON in rear-end, w/o heatsink, w/o lightpipe, EM finger on the bottom |
| PZPC48-E340-010-0R | S-SFP 1X4 CAGE,2 EON in rear-end, w/ 14.3mm heatsink, w/o lightpipe |
| PZPC68-E300-000-0R | S-SFP 1X6 CAGE,2 EON in rear-end, w/o heatsink, w/o lightpipe |
| PZPC68-E700-000-0R | S-SFP 1X6 CAGE,2 EON in rear-end, w/o heatsink, w/o lightpipe, EM finger on the bottom |
| PZPC68-E702-000-0R | S-SFP 1X6 CAGE,2 EON in rear-end, w/o heatsink, w/ lightpipe |
| PZPC84-E705-001-0R | S-SFP 1X8 CAGE,2 EON in rear-end, w/o heatsink, w/ lightpipe, EM finger on the bottom |
