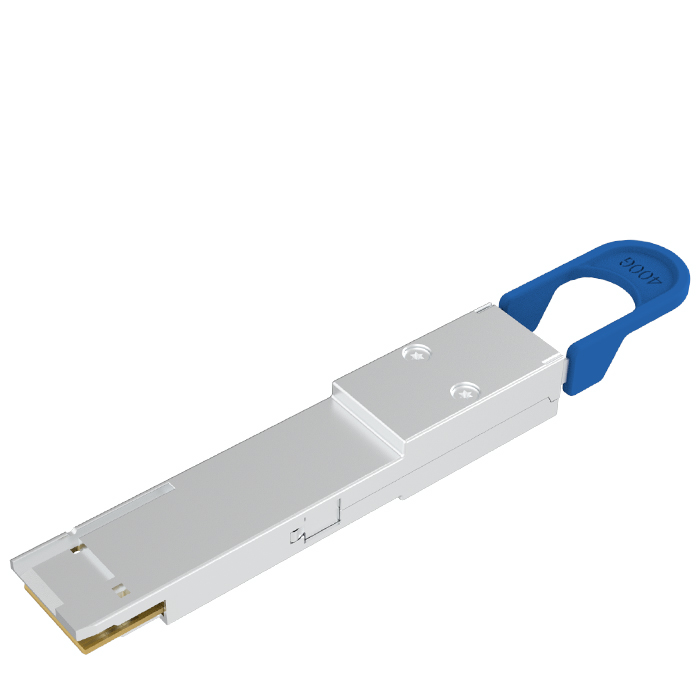

Luxshare-TECH 400Gbps QSFP-112 optical transceiver can provide new generation performance of QSFP-112 by higher date transfer rate. 400G QSFP112 DR4 is designed for 400G Ethernet links communication. The link distance up to 500m with single-mode fiber. It support 4x106Gbps aggregate bandwidth. The transceiver using high power 1310nm DFB Laser. The optical interface uses a APC MPO-12 connector and the electrical interface uses a 38 pins type connector. All the design is based on the industry standard specifications, such as SFF-8679, CMIS4.0 and QSFP-112 MSA specification.
|Part Number||Form Factor||Description||Reach||Data Rate||Temp||Power Consumption||Optical Connector||Wavelength|
|PA04QSB01-NC-R||QSFP-112||DR4||SMF 500m||400Gbps||0~70℃||10W||APC MPO-12||1310nm|
