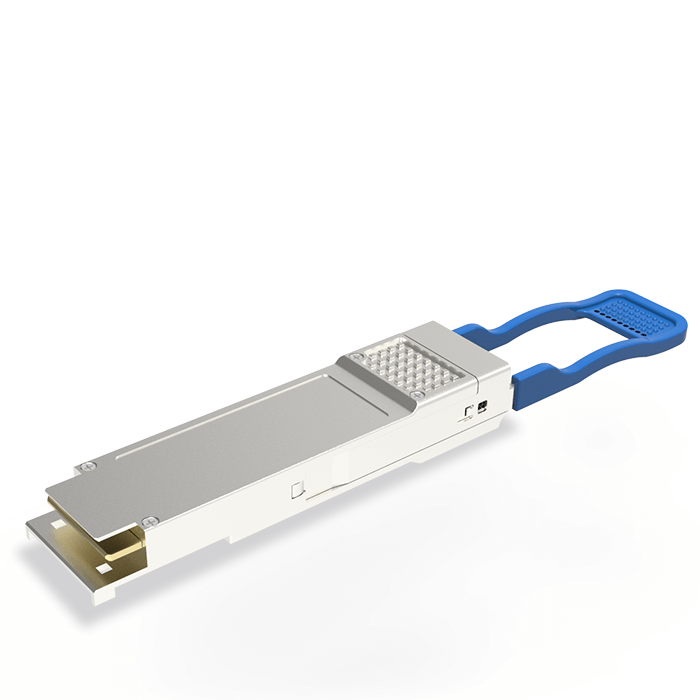

100G S-QSFP28 LR4-Rx

Luxshare-TECH 100Gbps S-QSFP transceiver is designed for 100G Ethernet links with long-reach communication. The receiver distance up to 10km with single-mode fiber. It integrates four receiver lanes in each direction with each lane operating at 25.78125Gbps.

FEATURES & BENEFITS

• Hot Pluggable QSFP form factor
• PIN Photo Detector
• Supports 25.78125Gbps per channel
• Maximum power consumption 1.5W
• Up to 10km transmission on SMF
• Operating Case Temperature: 0℃ to +70℃
• Single LC receptacles
